Cable Terminations

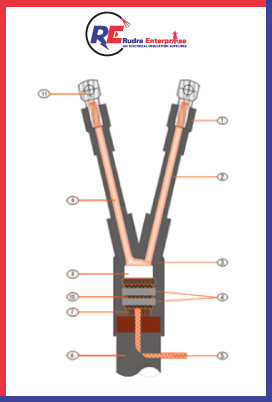

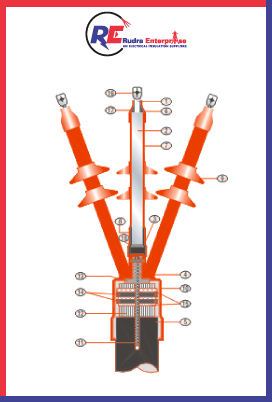

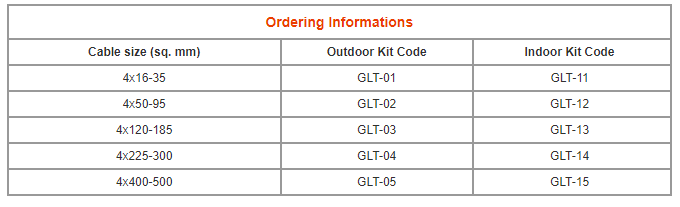

GLT - 1100 - Series Heat Shrinkable terminations kits designed for 1, 2, 3, 3?, 4, Core extruded Solid dielectric (XLPE / PVC) & paper insulated cable (Armoured / Un-Armoured) of 1.1kV & 3.3 kV rating.
GLT - 1100 - Series Heat Shrinkable terminations kits designed for 1, 2, 3, 3?, 4, Core extruded Solid dielectric (XLPE / PVC) & paper insulated cable (Armoured / Un-Armoured) of 1.1kV & 3.3 kV rating.
- Standard Tail Length is 600mm for outdoor and 450mm for indoor terminations. Special tail lengths available on request.
- Solderless and special purpose earthing kits also available on request.
- Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.
- Temperature sensitive paint changes colour when heat shrinking process is complete.

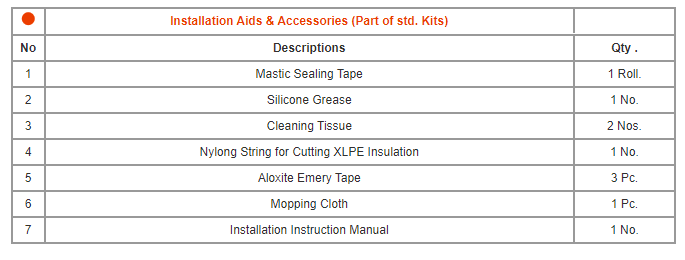

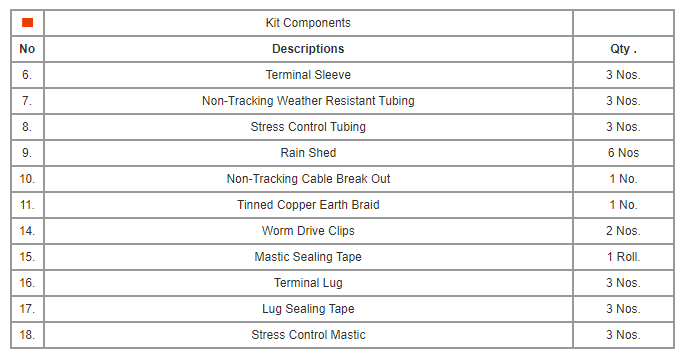

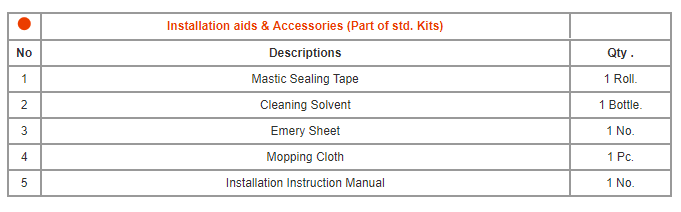

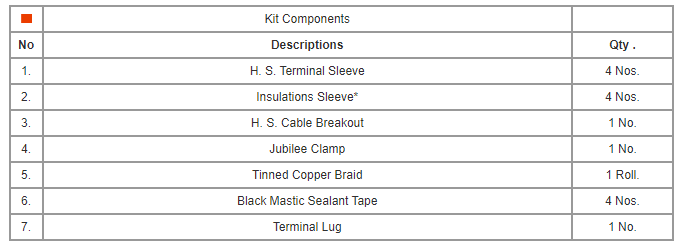

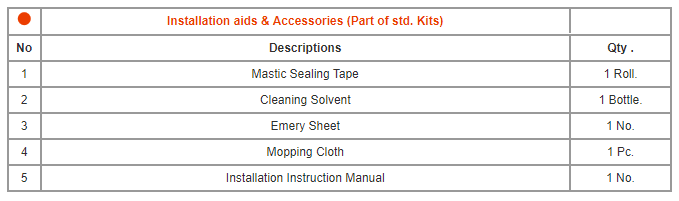

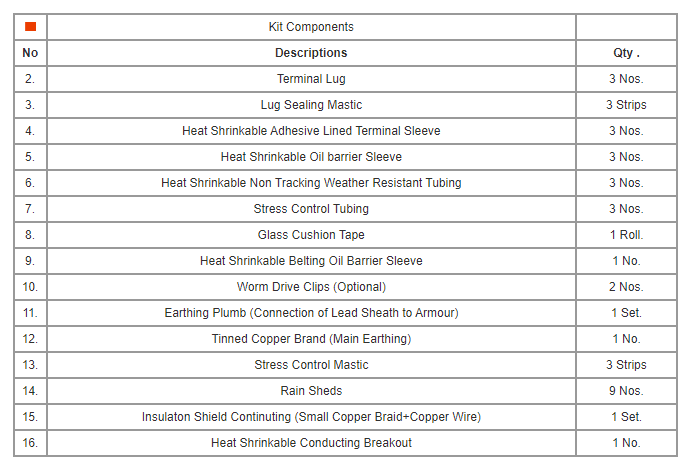

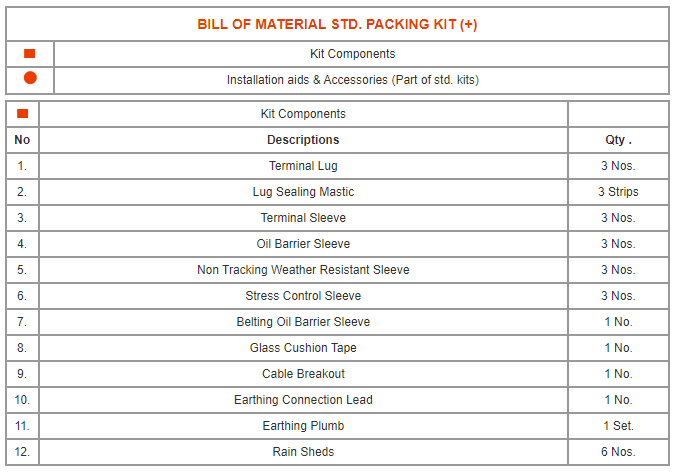

- All kits are supplied with full kit contents for making a termination.
- All Indoor Kits are supplied without rain sheds.

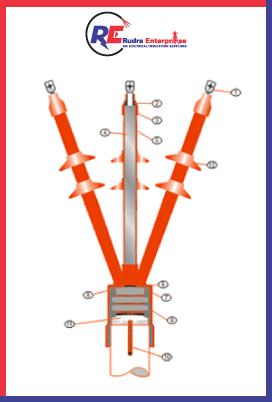

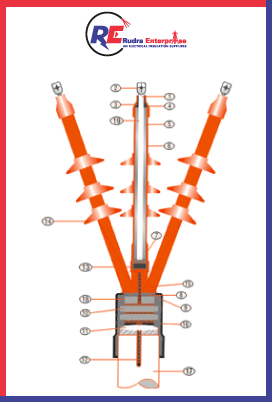

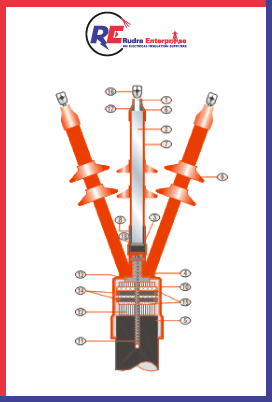

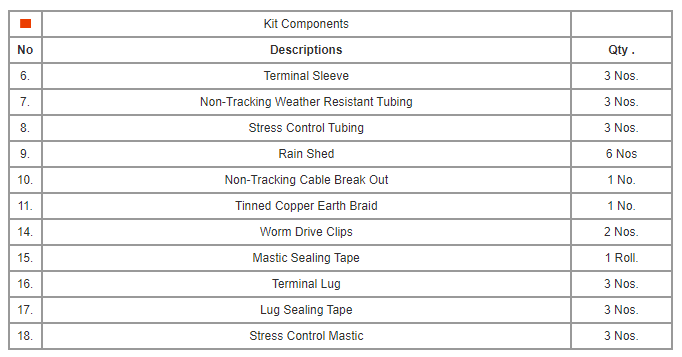

GXO / E - 1524 - Series Class I termination kits are Heat Shrinkable termination kits designed for 3 Core extruded dielectric, shielded. armoured & unarmoured 24 KV rated voltage (8.7KV/15KV, 11kV/11kV, 12.7/22kV, Umax=24KV).
- Standard Tail Length is 600mm for outdoor and 450mm for indoor terminations. Special tail lengths available on request.
- Solderless and special purpose earthing kits also available on request.
- Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.
- Temperature sensitive paint changes colour when heat shrinking process is complete.

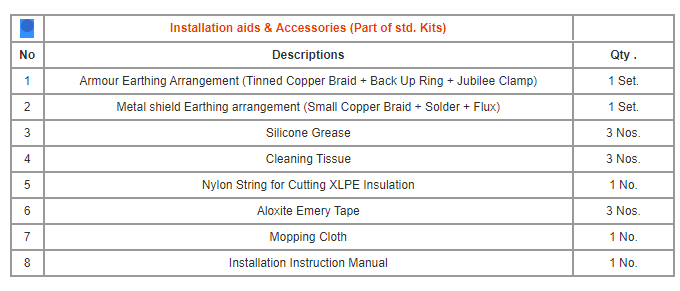

- All kits are supplied with full kit contents for making a termination.
- All Indoor Kits are supplied without rain sheds.

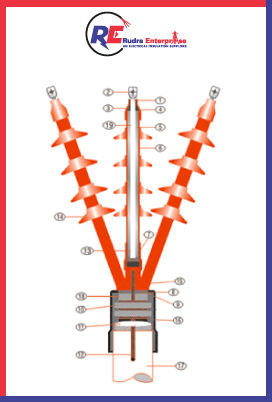

GXO / E - 1524 - Series Class I termination kits are Heat Shrinkable termination kits designed for 3 Core extruded dielectric, shielded. armoured & unarmoured 24 KV rated voltage (8.7KV/15KV, 11kV/11kV, 12.7/22kV, Umax=24KV).
- Standard Tail Length is 600mm for outdoor and 450mm for indoor terminations. Special tail lengths available on request.
- Solderless and special purpose earthing kits also available on request.
- Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.
- Temperature sensitive paint changes colour when heat shrinking process is complete.

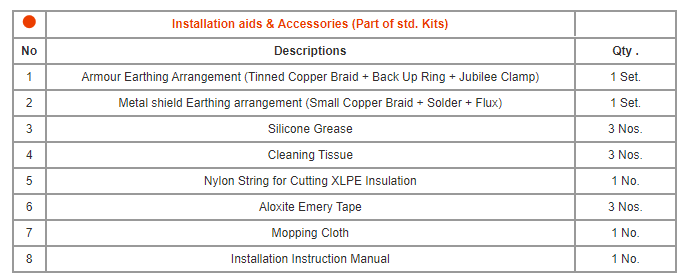

- All kits are supplied with full kit contents for making a termination.
- All Indoor Kits are supplied without rain sheds.

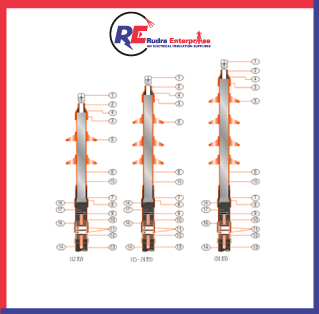

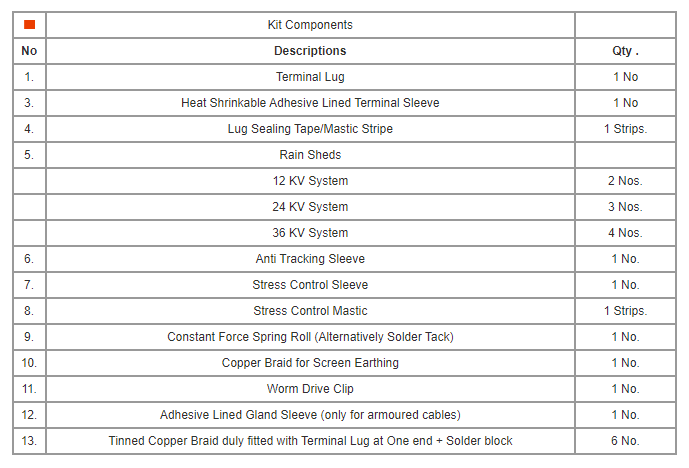

GXOS / E - 1236 - Series Class I termination kits are Heat Shrinkable terminations kits designed for Single Core extrude dielectric, shielded, armored & unarmored cable accessories upto 36kV rated voltage.
- Standard Tail Length is 600mm for outdoor and 450mm for indoor terminations. Special tail lengths available on request.
- Solderless and special purpose earthing kits also available on request.
- Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.
- Temperature sensitive paint changes colour when heat shrinking process is complete.
- All kits are supplied with full kit contents for making a termination.
- All Indoor Kits are supplied without rain sheds.

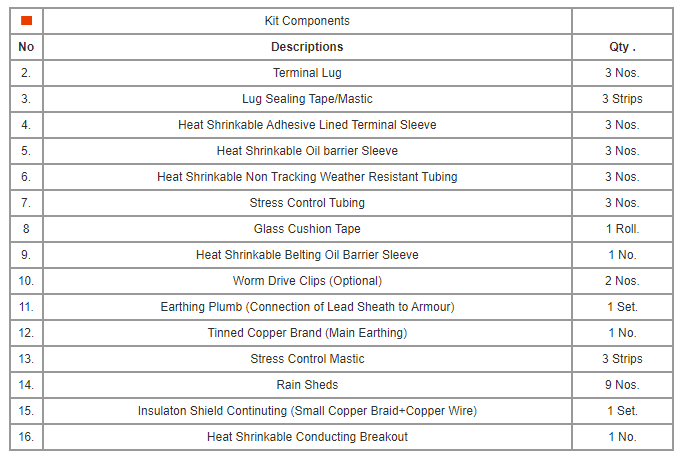

GPO / E - 1112 - Series Class I termination kits are Heat Shrinkable terminations kits designed for 3 Core Paper Insulated Lead Covered Armoured / Screened PILC Cables.
- Standard Tail Length is 600mm for outdoor and 450mm for indoor terminations. Special tail lengths available on request.
- Solderless and special purpose earthing kits also available on request.
- Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.
- All kits are supplied with full kit contents for making a termination.
- All Indoor Kits are supplied without rain sheds.
GPO / E - 1524 - Series Class I termination kits are Heat Shrinkable Outdoor Termination kits designed for 3 Core Screened, Paper Insulated Lead Sheathed / Armour Cable UPTO 24kV .
- Standard Tail Length is 800mm for and 550mm for indoor terminations. Special tail lengths available on request.
- Solderless and special purpose earthing kits also available on request.
- Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.
- All kits are supplied with full kit contents for making a termination.
- All Indoor terminations shall have 1 No. Rain shed on each core.
GPO / E - 3336 - Series Class I termination kits are Heat Shrinkable terminations kits designed for 3 Core Screen Lead Sheath / Armour Paper Insulated Cable UPTO 36kV (33kV& 36kV).
- Standard Tail Length is 600mm for outdoor and 450mm for indoor terminations. Special tail lengths available on request.
- Solderless and special purpose earthing kits also available on request.
- Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.
- Temperature sensitive paint changes colour when heat shrinking process is complete.
- All kits are supplied with full kit contents for making a termination.
- All Indoor Kits are supplied without rain sheds.
Cable terminations are made considerably tamper proof from environmental factors as the entire length between the wire termination point and contact is safely encapsulated with this protective product. None can predict the outbreak of a fire and hence the individual needs to take all the precautions that he can.
Terminations is an electrical conduit which comes in the metal and plastic form acts as a tough yet flexible protective covering for the cables. If it is installed with sufficient sealing fittings then it can thwart the flames or vapors from reaching the live cables. Sensitive circuits are shielded from the interference of electromagnetic waves and other emissions from enclosed power cables.
