Heat Shrink Moulded Sealing Caps

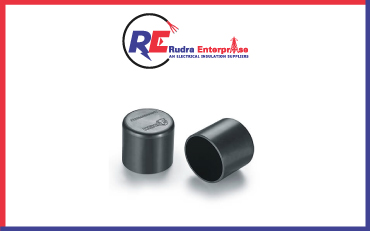

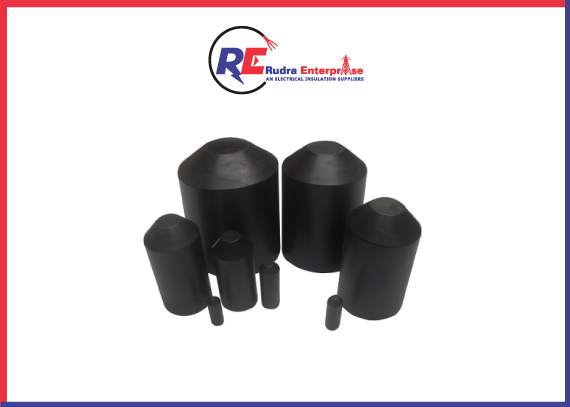

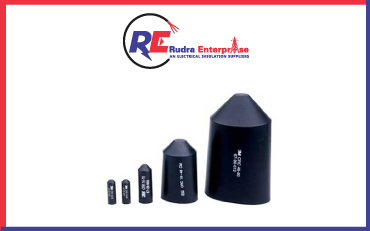

Cable End Caps - Cable End Sealing Cap - INSULCAP

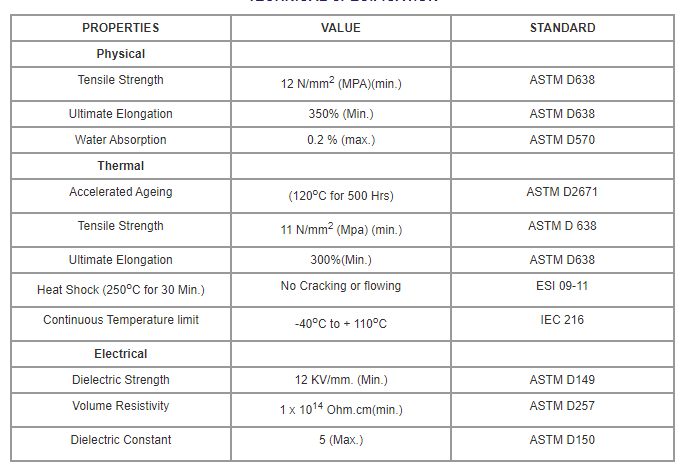

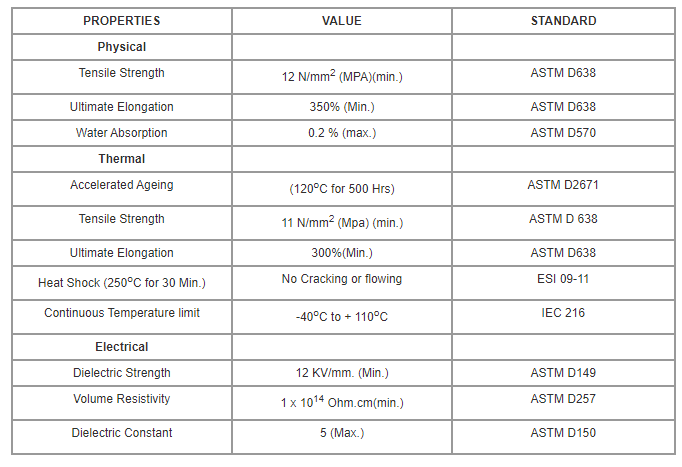

Insulcap is used to seal the ends of all types of Heat Shrink Cable End Caps to protect from ingress of water/moisture. The caps are manufactured from high quality cross linked polyolefin material.Compatible with most commonly used Cable Jackets i.e. XLPE, PVC, PILC or Rubber Sheathed Cable.Hot Melt adhesive lining provides permanent seal on irregular cable sheaths.Excellent resistance to weathering, moisture, contamination and adverse environmental conditions, according to IP 68 (Ingress Protection).
- Tamper Proof Application: Custom Logo / Print with special non- removable Ink marks permanent seal on End Cap after Shrinking, thereby avoiding claims in case of Pilferage of Cable length.
- Valved End caps (V) available for pressurized application for Telecom cables.
- Special Relief valved End Caps (RV) available for degassing application in High Voltage Power cables.
- Live End Cap Kit available for sealing Live Cables.
- Conductive End Caps are available with Conductive Mastic.

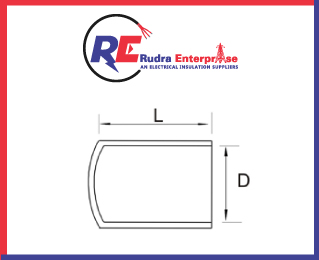

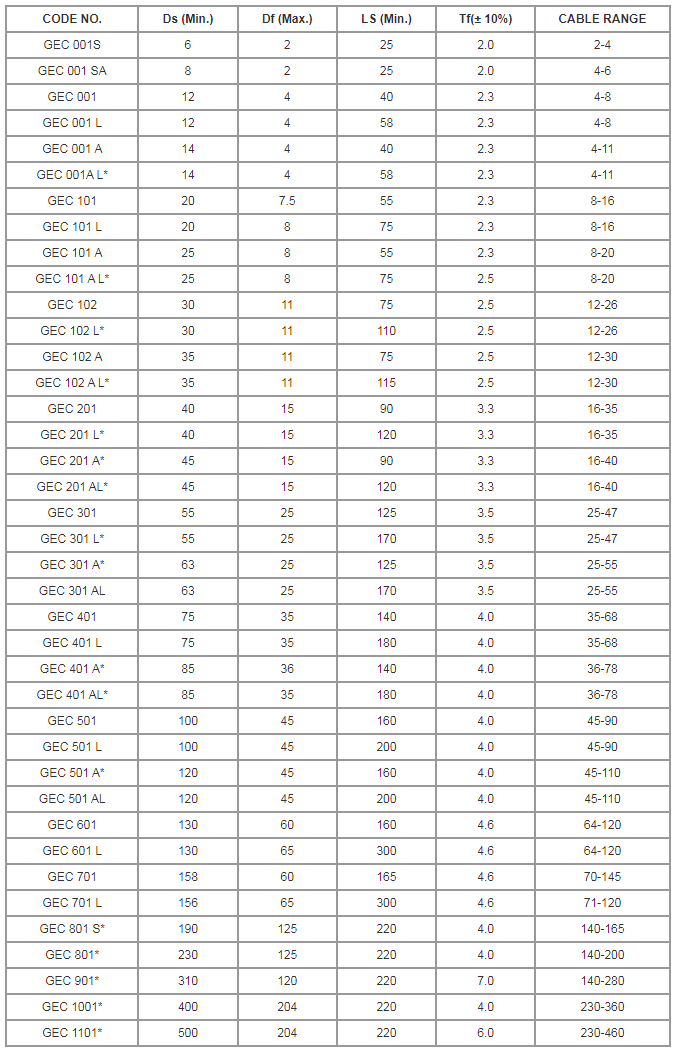

All dimensions are in mm

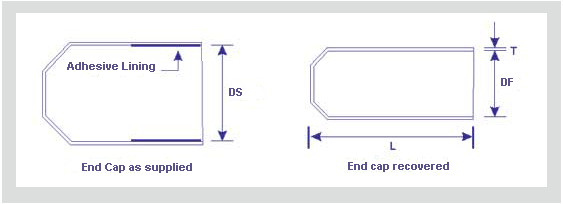

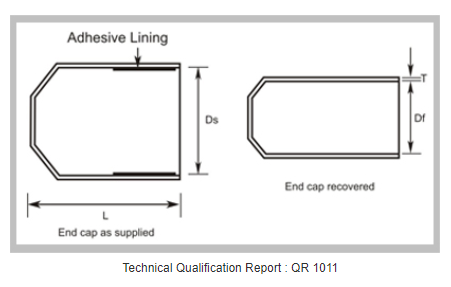

D : Internal Diameter ; s : as supplied ; f : after free recovery

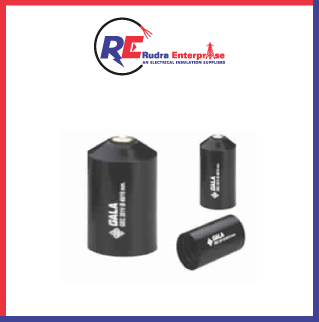

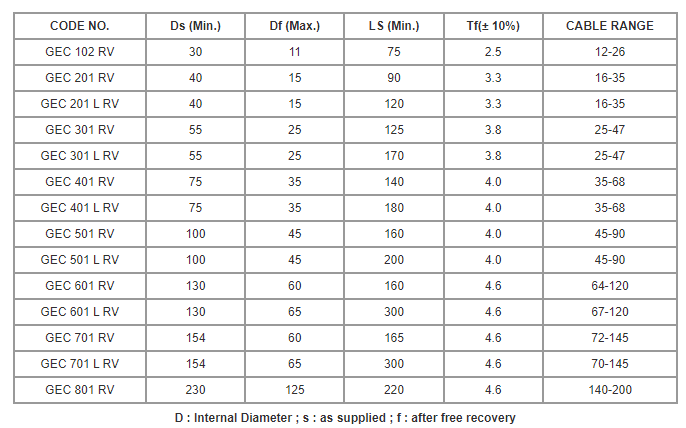

Cable End Caps - De gasing End Caps

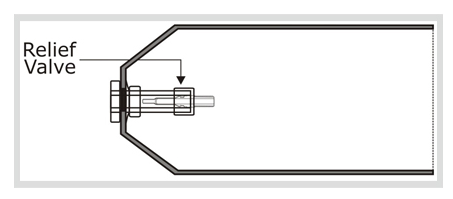

Insulcap-De-gassing (RV) is Heat Shrinkable End Caps, supplied with Relief Valve (RV) & are used for sealing High Voltage & Extra High Voltage Cables (33 kV & above) to release the constantly evolving gas generated inside the Cable during transportation & storage in hot climate conditions.
- Provides additional security to Cables by relieving the pressure generated by Residual gases.
- Automatically releases gas when pressure rises above 3 psi.
- Eliminates possibility of accidental fire caused due to trapped Methane gas while removing the (normal / non relief valved) End caps.
- Possibility to reduce the timing of de-gassing (heating) chamber, thereby savings in energy & time.
- Relief (Non-returnable) valve shall not allow moisture, water, dirt, etc. to enter the cable.
- Ensures gas / defect free cables, adds customer satisfaction.
- Each Relief valve is factory tested for gas release.
- Meets IP 68 (Ingress Protection)

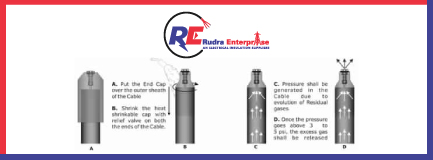

Working of pressure relief valve
All dimensions are in mm

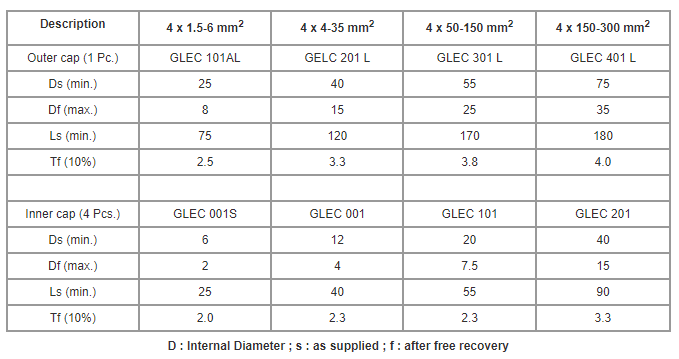

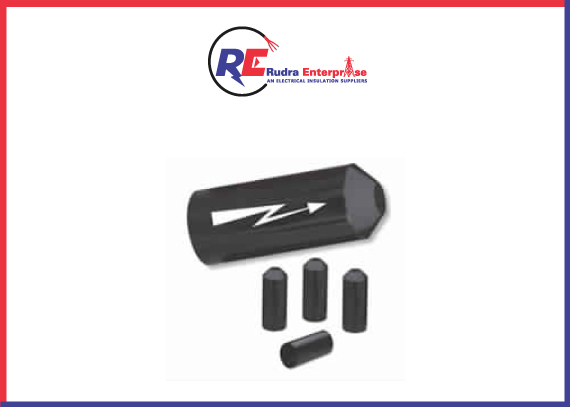

Cable End Caps - Live End Caps
Insulcap-Live (GLEC) are Heat Shrinkable Caps, used to seal the live cables. The caps are manufactured from high quality cross linked polyolefin material.
Each core is separately sealed using small end caps. Finally a thick wall outer heat shrink cap is applied marked with a live flash symbol.

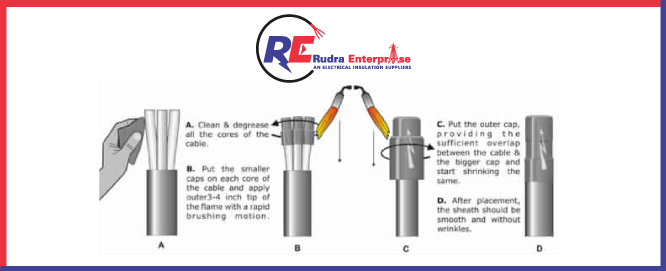

Installation Instructions
All dimensions are in mm

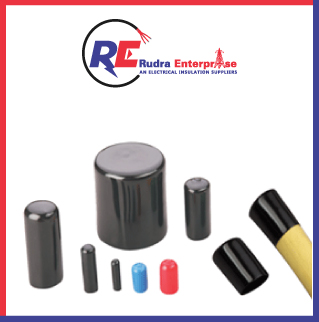

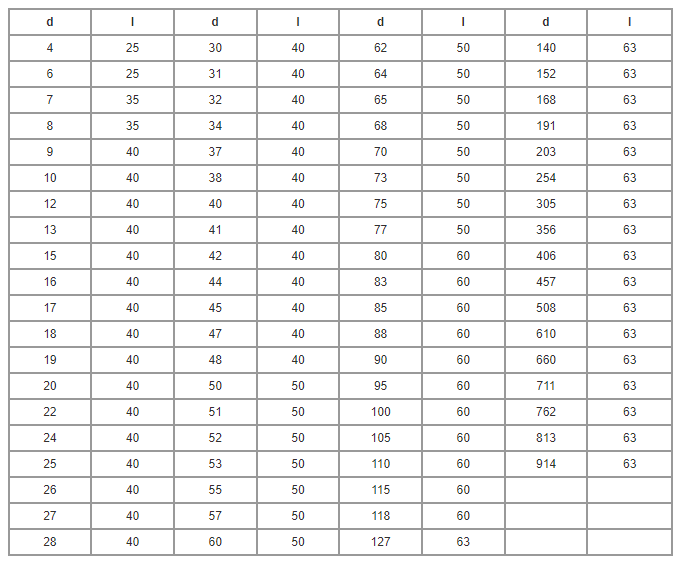

PVC Caps
As the major producer of PVC caps in the world, Galathermo has the widest line of caps, plugs, flange covers, and products available. Of course, this broad line of products evolved due to the individual compensation that plugs have over nearly all hard plastic closures.
- Vin cap is made from specially formulated Poly Vinyl Chloride material.
- Push-on type application.
- Ensures perfect protection to cable ends from weathering, moisture and contamination.
- Quick and easy installation without any tools. No skill is required.
- Extremely economical and cost effective compared to Heat Shrink End Caps.
- Caps of varying lengths & thickness can be made with no tooling charge.
- Will not Crack or Split like Low Density Polyethylene.
All dimensions are in mm
