Cable Sealing and Repair Products

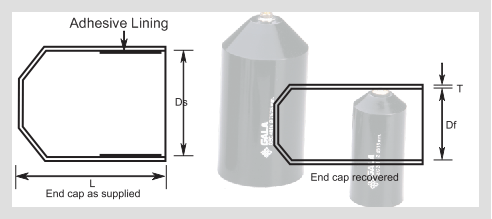

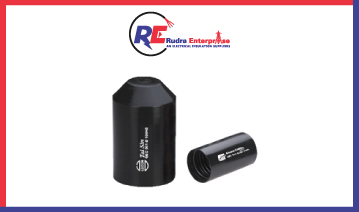

Tamper Proof End Seal is Heat Shrink End Cap, used to seal the ends of all types of Cables & to protect it from ingress of water/moisture. The caps are manufactured from high quality cross linked polyolefin material.
- Permanent Foolproof Seal to the Cable end.
- Can not be tampered, removed or re-used.
- Can be considered as Factory fitted Cable end seal.
- Customised Logo Printing with Special High Performance Non Removable Ink.
- Warranty of Cable length can be considered as void in case Cable is found withouAvoids unwanted customer claims for Shortage/Pilferage of Cable length.t Tamper Proof end seal.
- Avoids unwanted customer claims for Shortage/Pilferage of Cable length.
Compatible with most commonly used 36 Kv Cable Joints i.e. XLPE, PVC, PILC or Rubber Sheathed Cable.
Hot Melt adhesive lining provides permanent seal on irregular cable sheaths.

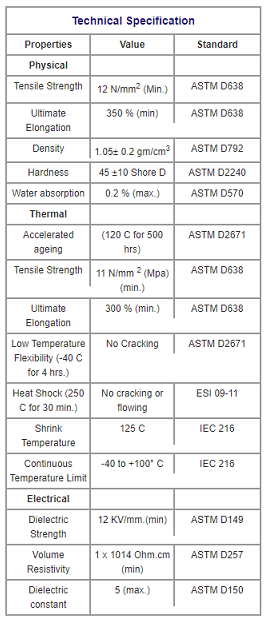

Excellent resistance to weathering, moisture, contamination and adverse environmental conditions, according to IP 68 (Ingress Protection).
- Valved End caps (V) available for pressurized application for Telecom cables.
- Special Relief valved End Caps (RV) available for degassing application in High Voltage Power cables.

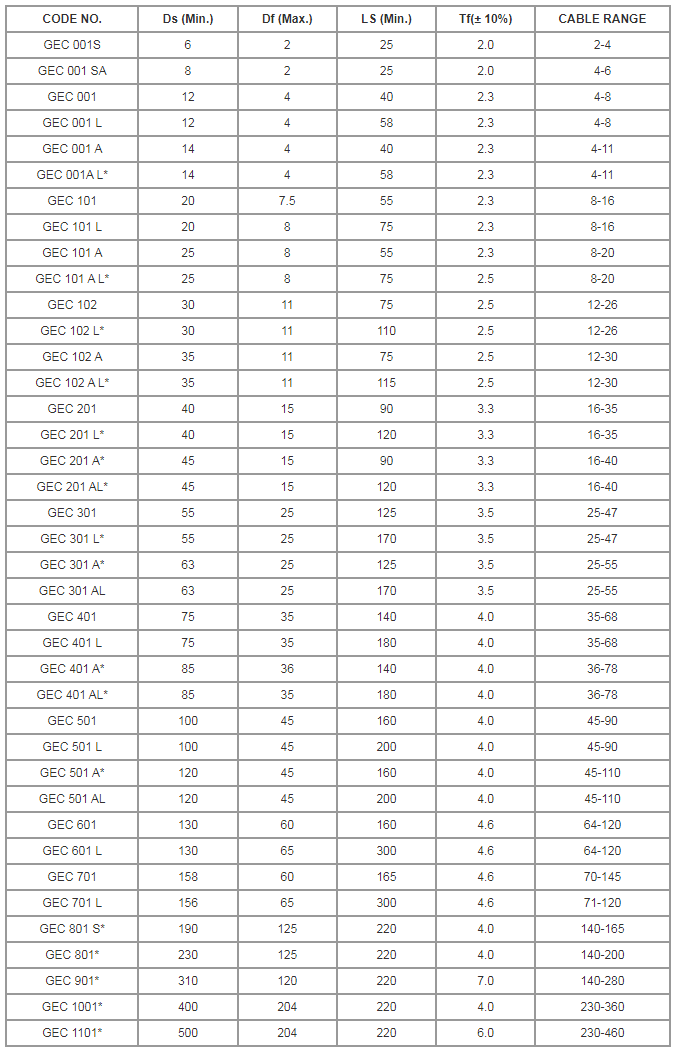

All dimensions are in mm

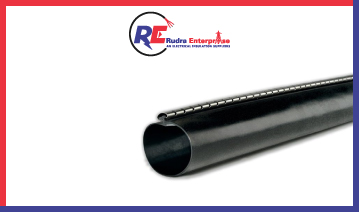

Heat Shrink Wrap Around Sleeve is a cross linked polyolefin 'tube' which is folded around the cable/pipe, zipped up with a stainless steel channel and then heat shrunk.It is also cold as (Cable Repair Sleeve).
Shut down of system not required for repair.
- Shut down of system not required for repair.
- Hotmelt adhesive provides complete environmental sealing and insulation.
- High resistance to UV rays, chemicals, corrosion, fungus, etc.
- Temperature sensitive paint changes colour when heat shrinking process is complete.
- Maximum length available upto 1500 mm.
- Meets IP 68 (Ingress Protection)

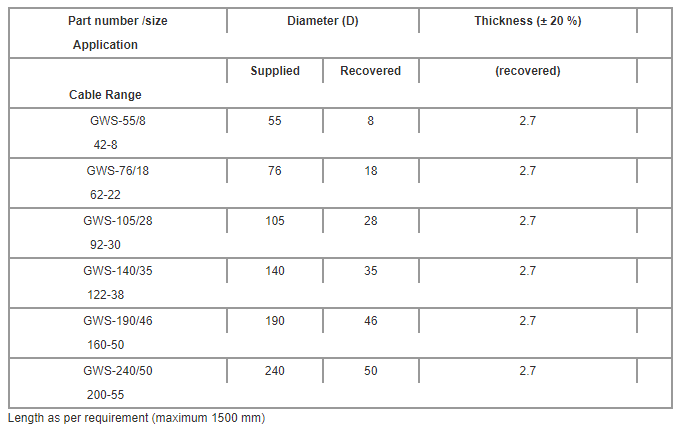

All dimensions in mm
For Cable Repairs
For the protection of Cable joint
For corrosion protection of Oil, Water & Gas pipeline

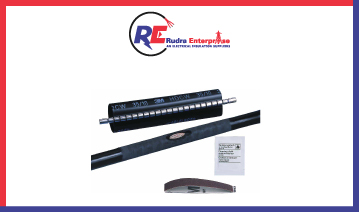

Cable Repair Sleeves

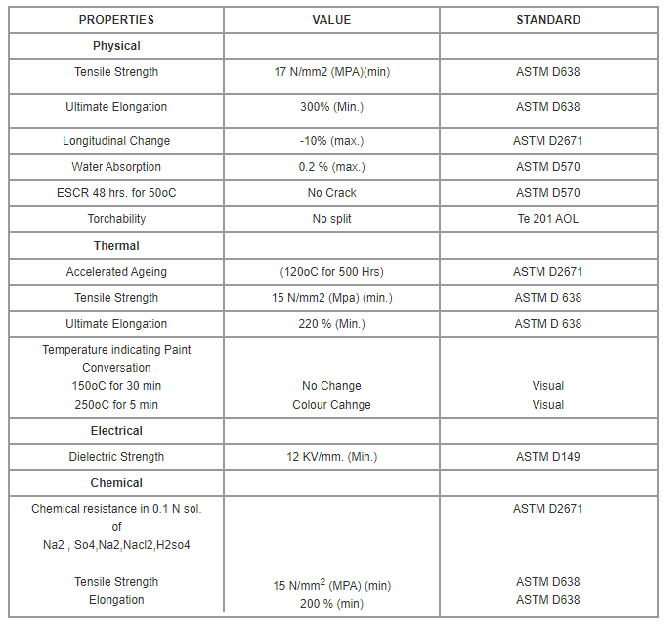

Heat Shrink Cable Repair Sleeves is manufactured from High Quality Cross-linked polyolefin material. Heat Shrink Cable Repairing Sleeve is an adhesive lined, wraparound heat shrink that can be easily applied without the need for disconnection. It provides superior environmental sealing, rugged mechanical protection and high performance electrical insulation.
- Provides permanent waterproof barrier & environmental seal.
- Shrink ratio 3:1.
- Chemical, copper corrosion and fungus resistance.
- Shut down of system not required for repair.
- Hotmelt adhesive provides complete environmental sealing and insulation according to IP 68 (Ingress Protection).
- High resistance to UV rays, chemicals, corrosion, fungus, etc.
- Significant protection advantages over insulating tape.
- Reduces total labour and installation cost.
- Stocking only a few sizes will fit most repair needs.
- Sleeve can be cut to size in field to suit application.
- Custom dimensions available on request.

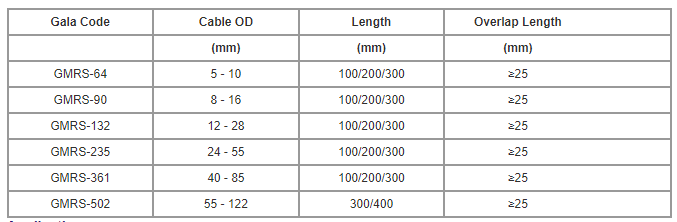

- Can also be offered in optional Medium (GMRS) and Heavy (GHRS) wall versions.
- Repair of damaged cable jackets.
- Retrofit protection of connections.
- Connectorized cable repair.
- Used in confined spaces underground and ideal for protections of defrayed cable / connectors.
- Cable / conduit transitions.
- Cable / wire / rope bundles.
- Used in communication, Electrical, Utility, Industrial, Shipboard, Offshore, Marine, Wire and Cable industries.

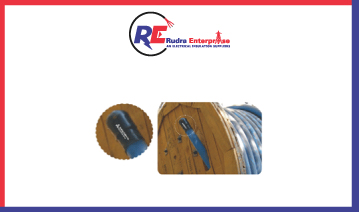

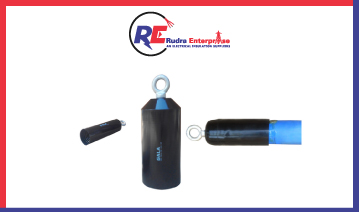

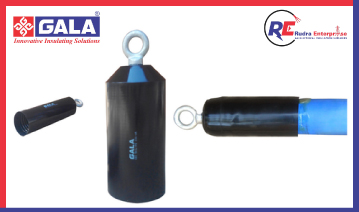

End Cap with Cable Pulling Eye
These Heat Shrink End Caps with Cable Pulling Eye for Telephone and Power cable are the ultimate solution in cable pulling eyes. These caps with pulling eye form a connection as strong as the cable itself. The entire cable, jacket and conductor, is used which reduces the risk of cable deformation during pulling. When properly installed, Heat Shrink End Caps with Cable Pulling Eye are virtually impossible to pull off and also seal the cable against both water and moisture intrusion. Typically factory installed, the pulling eyes can also be field installed with a propane (preferred) or butane gas torch.
- Min. Pulling Force 13 N/mm2
- Dual application: 100% sealing & pulling cable
- Most economical compare to other pulling eyes
- No special tools or crimpers required
- Reduces the risk of cable deformation during pulling
- Single inventory

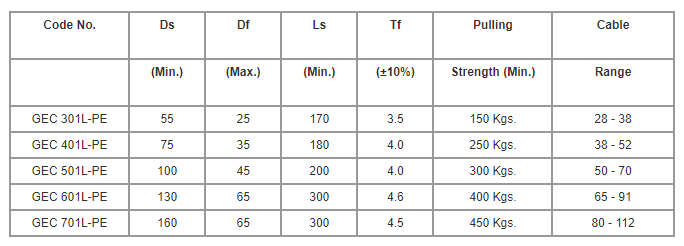

All dimensions are in mm
