Heat Shrinkable Tubes
Advantages Heat shrink tubing

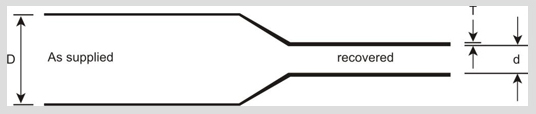

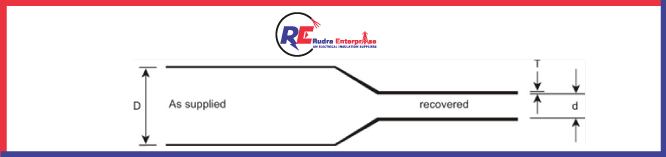

In terms of installation, the tubing should fit snugly around the cables you're protecting, so selecting the right tubing size is critical. Sizes are denoted as a ratio of expanded size, so a 3:1 ratio means the tubing shrinks to 1/3 of its original diameter. A 2:1 ratio means the tubing shrinks to half the size of its original diameter. Heat shrink tubing comes in many different ratios. Always select tubing that will shrink to a slightly smaller size than the cable you are applying it to.

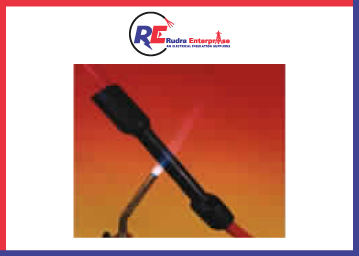

Provided in the expanded state, Gala Heat Shrinkable Tubing "shrink wraps" intricate and irregular shapes with a simple application of heat. The result is a protective covering that greatly extends life, increases reliability and improves performance of components and parts used in thousands of applications.
Uses of Heat Shrink Tubing :
1. Protective Sealant :

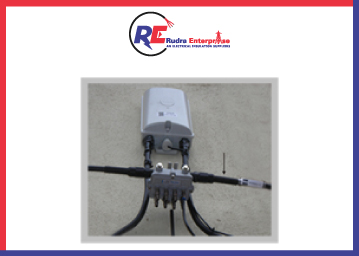

Heat shrink tubing is often used to seal water and dust out of cables and cable splices. It is ideal for protecting home theater and personal computing connections from moisture.
2. Insulation From Heat and Chemicals :
Extreme heat and exposure to chemicals can damage cables. Flame retardant heat shrink tubing can be used to insulate the wires of a car or boat's electrical system.
3. Easy Identification :

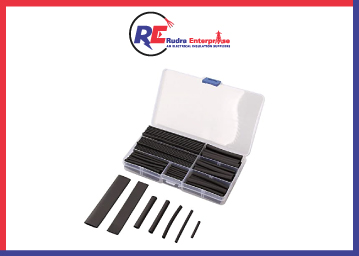

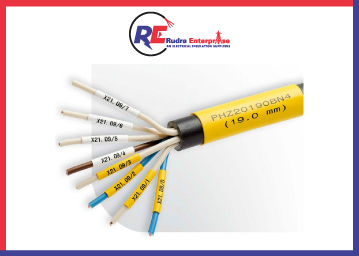

Cables tend to get tangled, which makes their routing hard to identify. Because heat shrink tubing comes in a variety of colors its ideal for color coding messy groups of network cables. Using heat shrink tubing for labeling is a smart alternative to labeling with adhesive tape due to the protective nature of the tubing itself.
4. Strain Relief :
Cables from your personal computer or home theater are often strained due to insufficient length or tight quarters. Fitting these cables with heat shrink tubing can relieve that strain, prolonging their life span in the process.
5. Tool Grips :
Heat shrink tubing can be shrunk to fit your tool handles, providing new grips where old ones have frayed or fallen off entirely. For a longer-lasting grip, use adhesive-lined heat shrink tubing.
6. Soldering :
Instead of soldering, heat shrink tubing lined with conductive polymer film can be used to join two wire splices. The inner coating of polymer film creates an electrical connection, allowing you to join two wires and protect them simultaneously.
7. Professional Appearance :
Heat shrink tubing lends a professional quality to any custom computer case or custom automobile. Heat shrink tubing is a highly-adaptable tool that can be used in a wide variety of circumstances. From labeling to protection to strain relief, it's an essential tool to have at your disposal.

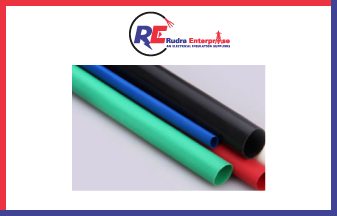

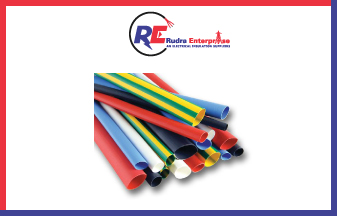

Thin Wall Tubes

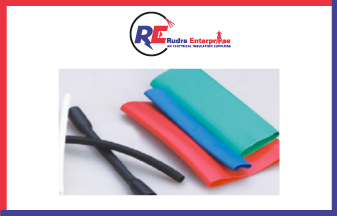

GSC : Thin Wall Flame Retardant Tube
GDW : Dual Wall Tubing

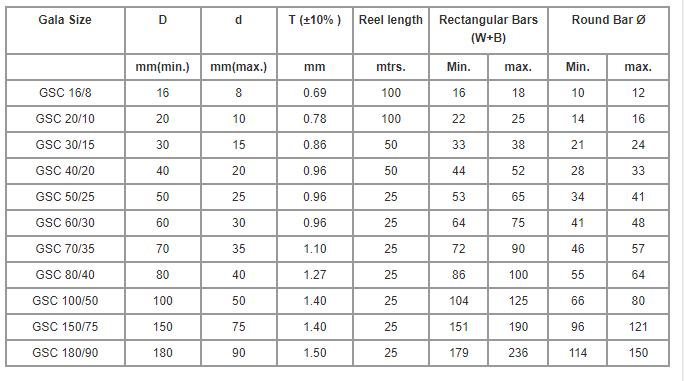

GSC & GSC/YG are Heat Shrink Thin Wall Tubes suitable for below applications :

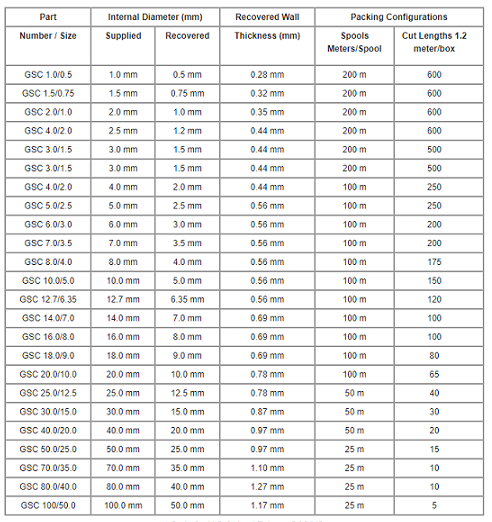

GSC Series :
- Light duty wire harnessing for electrical & electronic applications.
- Provides electrical insulation and protection for in-line components.
- Used as strain relief for electrical wire connection.
- Bus-bar insulation for switchgear.
- Color coding for wires, cables, terminals and components.
GSC/YG Series :
GSC/YG range of tubing is extremely flexible, flame-retardant, thin wall with yellow and green striped heat shrink polyolefin tubing especially for electrical equipment ground lead applications. The unique dual color striping of yellow and green provides an instant identification for ground wires.
Genral Properties of Product :
- Halogen free, Flame retardant and self-extinguishing
- For Electrical Insulation up to 3.3 kV
- Resistance to chemical, copper corrosion and fungus
- Standard Colors: Black, White, Yellow, Red, Blue, Green, Yellow/Green and Clear.
- Shrink ratio 2:1
- UV stabilized
- Meets RoHS Compliance

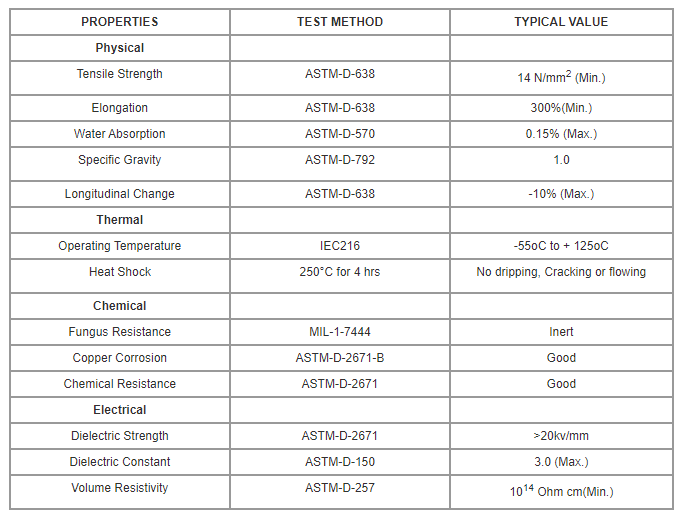

Specification :
MIL-1-23053/5 Class 2 & 3, Ul224 (File no. E328538) 1250C VW1, CSA C22.2

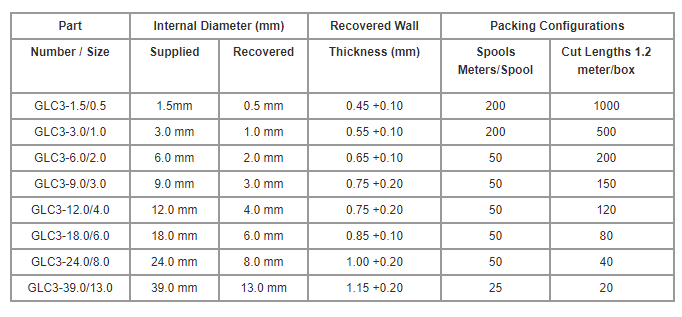

GLC3 (3:1) is Heat Shrink Thin Wall Tube, designed to be used in critical areas such as Tunnels & Mines.
Genral Properties of Product :
- Shrink ratio 3:1
- For Electrical Insulation upto 600 volts.
- Standard Colors: Black, White, Yellow, Red, Blue, Green and Clear.
- Meets RoHS Compliance
Specification :
ASTM, IEC

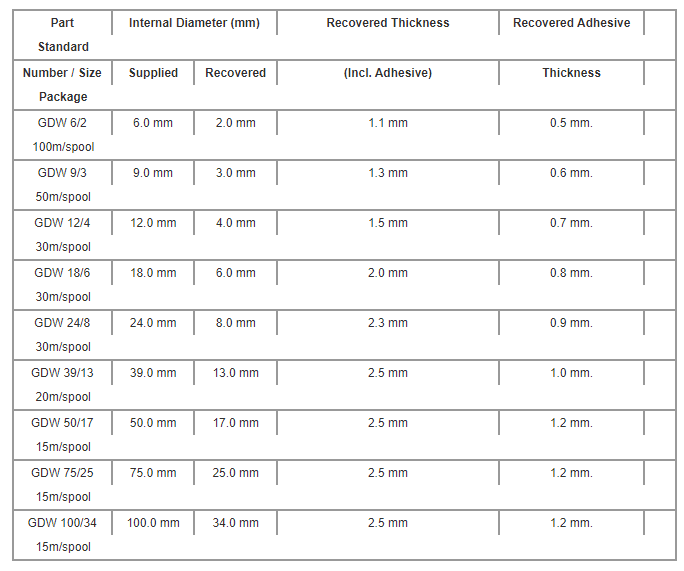

GDW is dual wall tubing manufactured by co-extrusion of polyolefin and hot melt adhesive. Designed to provide both insulation and sealing for protected articles.
Applications :
- Provides permanent waterproof barrier & environmental seale for electrical components such as wire splices & hardness in automobile & communication industry.
- Used as an alternative to moulded parts and cable breakouts
- High shrink ratio enables insulation of cables with connectors of various sizes-Suitable for use in telecommunication, industrial equipment, automotive and avionics.

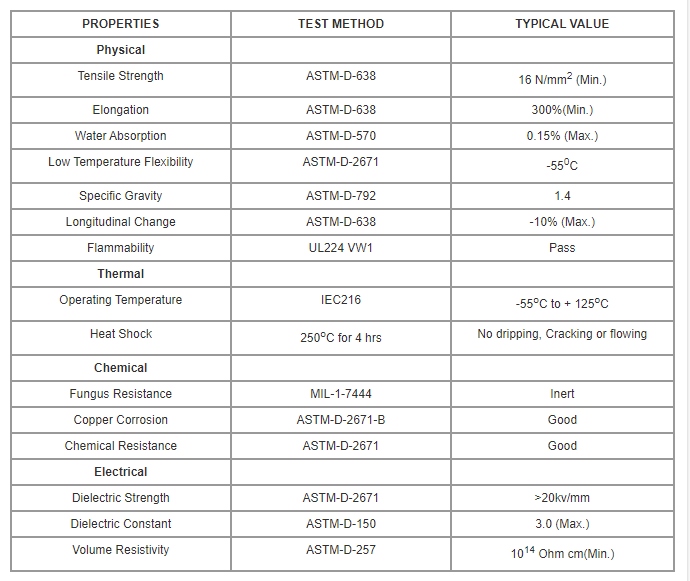

General Properties of Product :
- Shrink ratio 3:1
- Operating temperature ranges from -550C to +850C
- Flame retardant and self-extinguishing
- Chemical, copper corrosion and fungus resistance
- Dielectric strength of 15KV/mm.
- Meets RoHS Compliance
- Meets IP 68 (Ingress Protection)
Specification :
IEC, ASTM, AND MIL-SPEC

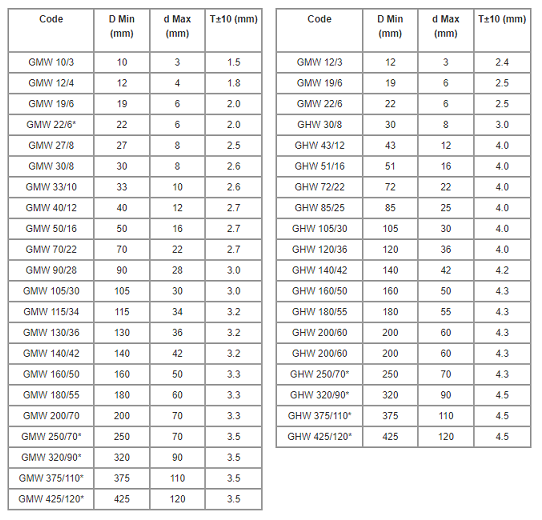

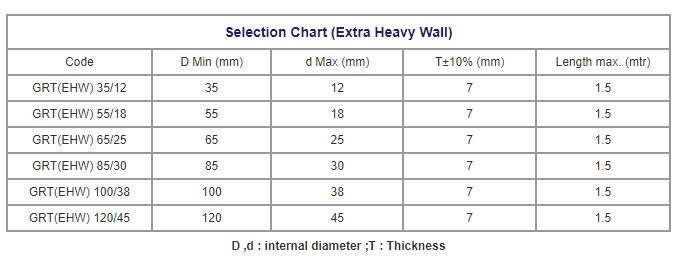

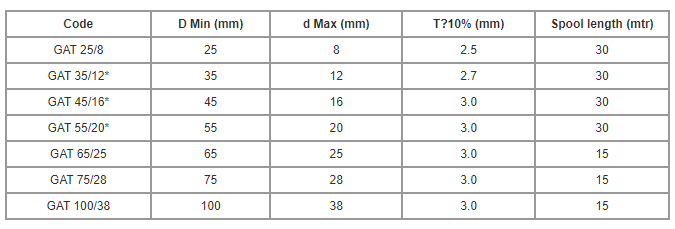

Medium/Heavy Wall Tubes-Commercial

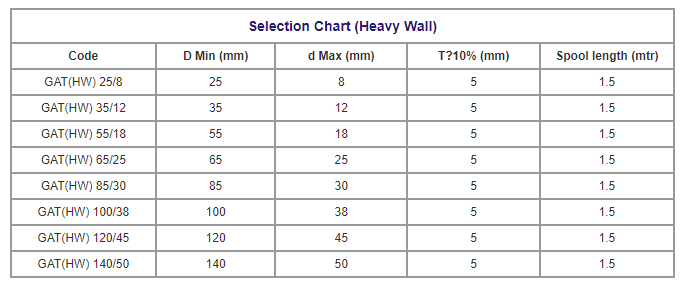

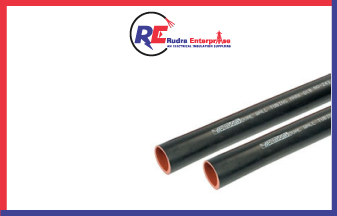

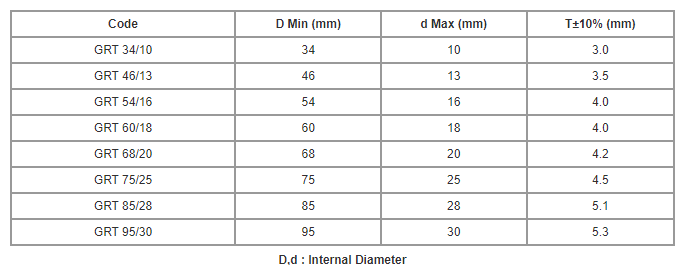

Insultube GMW and GHW are medium wall and heavy wall black tubing. GMW tubes are used for environmental protection of low voltage cable termination and insulating the connectors for low voltage straight through joints/splice rated upto 3.3KV. GHW tubes are used for mechanical protection and outer sealing of underground straight through cable joints / splice upto 36KV.
- These tubes are manufactured from high quality cross inked polyolefin material.
- Optional hot melt adhesive lining for complete environmental protection and insulation.
- Excellent resistance to weathering, UV rays, chemical and solvents.
- Maximum cut length available upto 1500 mm.for tube size uppto size 250mm.
- Custom dimensions, thickness, length & colours available on request.
- Conforms to IEC 60684-3-247 standard.
- Meets IP 68 (Ingress Protection)

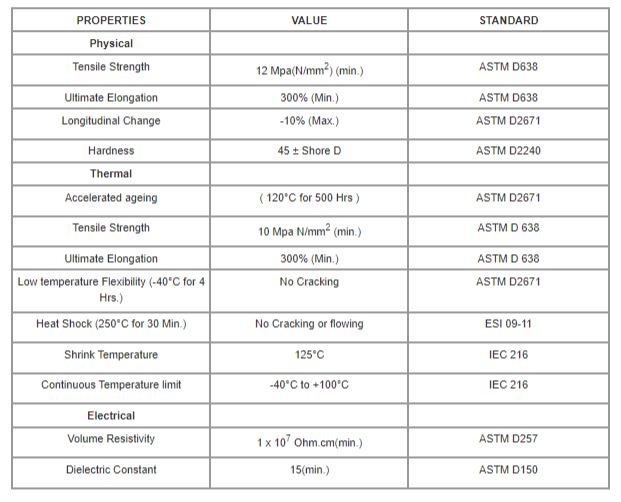

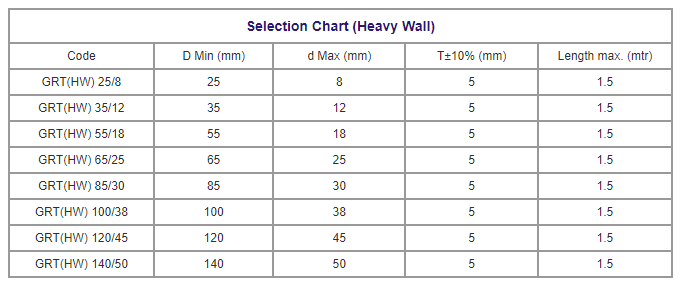

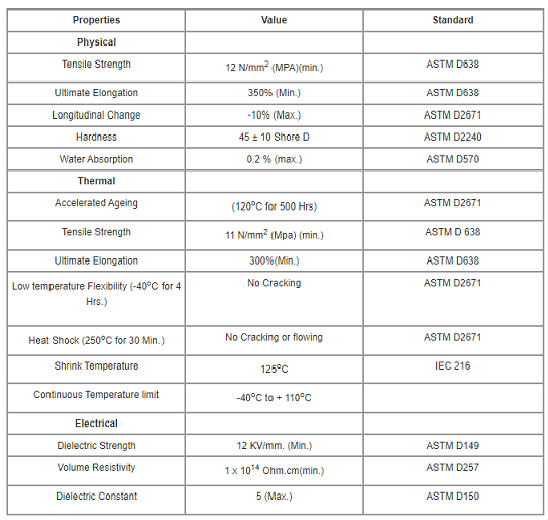

Genral Properties of Product
- Shrink ratio 3:1
- Operating temperature ranges from -400C to +1100C
- Chemical, copper corrosion and fungus resistance
- Dielectric strength of 15KV/mm.
- Meets RoHS Compliance
- Meets IP 68 (Ingress Protection)
Specification :
IEC, ASTM, AND MIL-SPEC

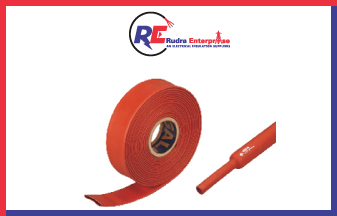

Red Insulation Tubes - INSULTUBE red

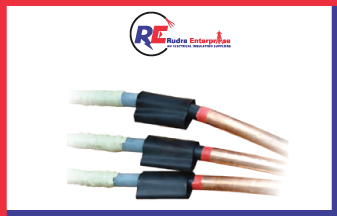

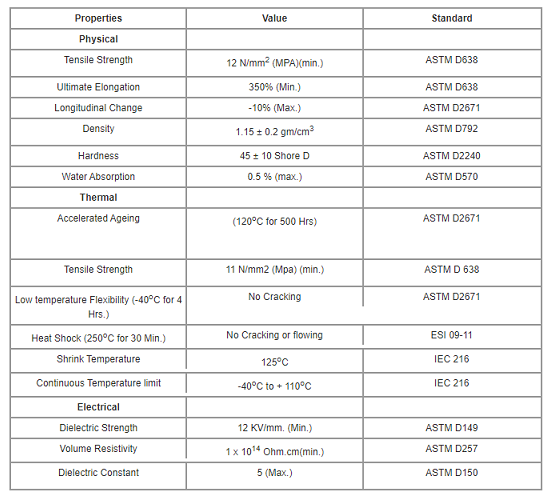

Insultube - Red is used in Power Cable Joints for MV Applications.
These tubes are manufactured from high quality cross linked polyolefin material.
Excellent Di-electric properties.
Conforms to IEC 60684-3-247 standard.
Halogen free, ROHS compliant.
Customised dimensions, thickness, length & colours available on request.
Non Tracking tube - INSULTUBE non tracking
Insultu - Non Tracking tubesbe are used in Medium Voltage becable joints and terminations upto 36 KVbe. The tubes are produced from high quality non tracking cross linked polyolefin material that offers exceptional insulation and long term service reliability.

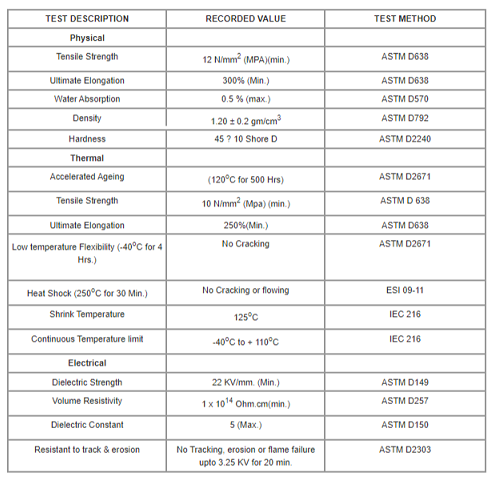

General Properties
- Excellent anti-tracking performance and erosion resistance.
- Halogen free, flame retardant.
- Good weather / UV resistance.
- High resistance to chemical, solvent, corrosion and fungus.
- Meets RoHS Compliance
- Customised dimension, thickness, length & colour available on request.

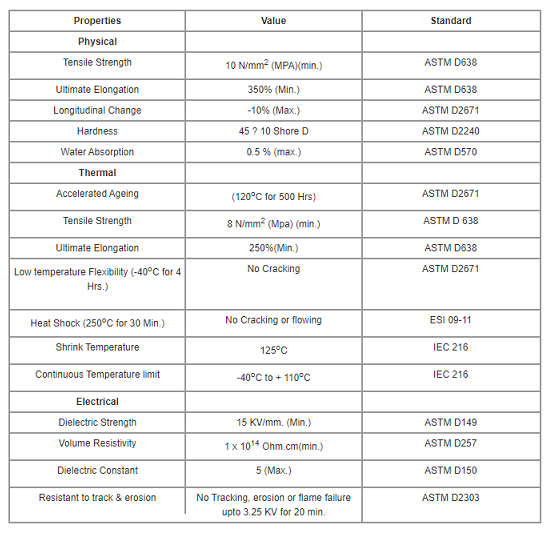

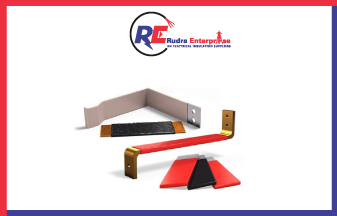

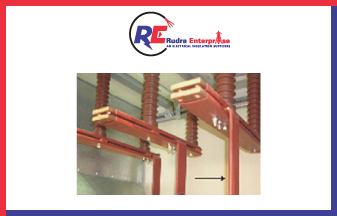

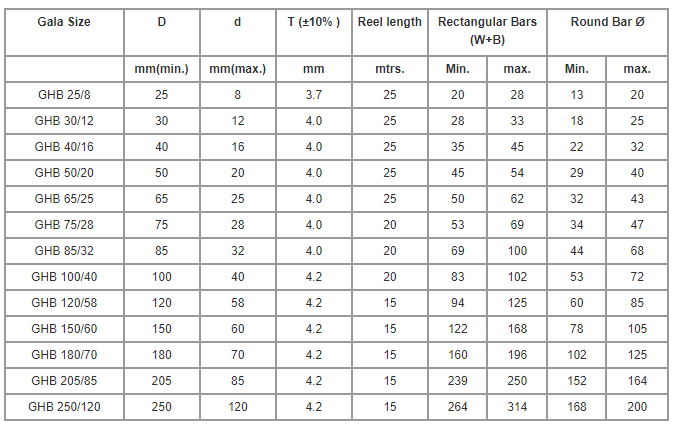

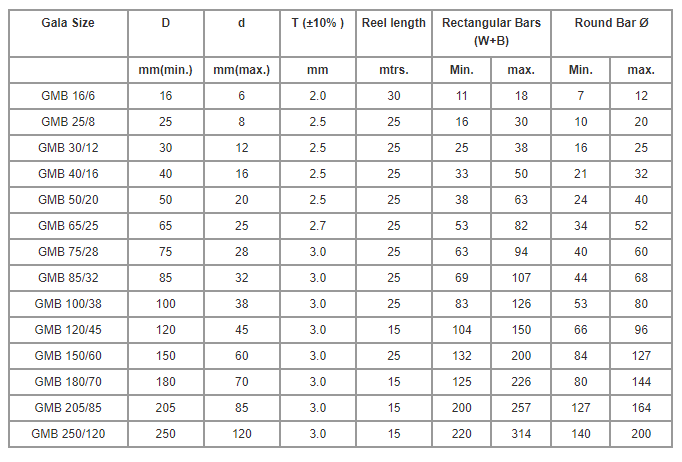

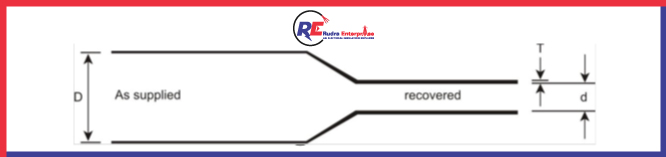

Busbar Tubes - BUSTUBE

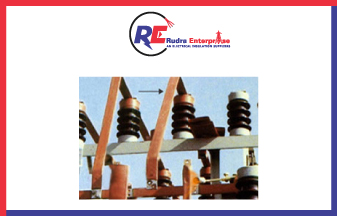

Bus Tube is heat shrinkable tube designed to insulate busbar systems up to 36KV & to protect against accidental flashover. The tubes are manufactured from high quality non tracking crosslinked polyolefin material. Meets ANSI C37.20.2 standards for MV switchgear application up to 36 KV.

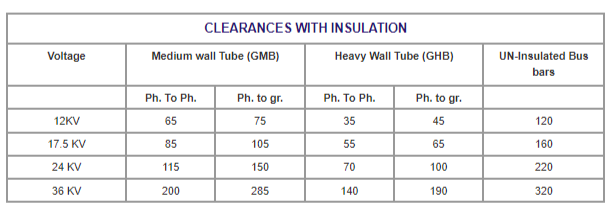

- Reduce Busbar clearance.
- Prevent Busbar from chemical corrosion effected by strong acid, alkali, salt etc.
- Solve the problem of insulation among Busbar in Bus Duct.
- Halogen free, flame retardant.
- High dielectric strength.
- High dielectric strength.
- Highly Flexible for use on straight or angled bars without creasing.
Tested to ANSI C 37.20.2 Standards for medium voltage switchgear application to 36KV.
Stress Control Tube
Insultube-Stress is manufactured from Radiation Cross -linked Polymeric material. The specially designed chemical formulation and manufacturing technology allows it to control High Electrical Stress present at Insulation Screen Terminals and Power Cable Joints upto 36KV.
- Electric Stress Relief Tubing
- Opperation Temperature:-40°C to 100°C
- Minimum Shrink Temperature:100oC
- Minimum fully Shrink Temperature:130oC.
- Standard Color:Black.
GVOT Tube
Heat Shrink GVOT Sleeve is manufactured from High Quality Cross-linked polyolefin material. It is used to protect cables or similar substrates in areas of extreme environmental conditions and high electrical stress. The tubing protects substrates from erosion caused by leakage current. The sealant provides a moisture proof environmental seal to the substrate. The tubing is normally used as an integral part of Gala Cable Terminations for voltages above 1 kV.
- Integrated new varistor stress control system.
- Excellent electrical performance.
- Compact design.
- Few components.
- Simple to install, high reliability.
- More economical.
