Miscellaneous
Constant Force Spring are made from Stainless steel material & it is no current carrying parts. It is used for solder free electric connection between metal cable elements & earthing device. Also used for cast-resin,heat shrink and medium voltage joints. Easily applied onto the sheath, connection. Corrosion free & mechanical stable. Continues to exert constant pressure.

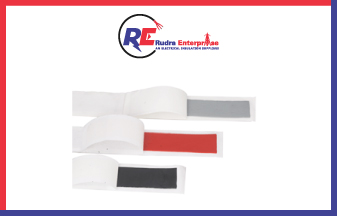

Mastic Tape is use for insulation in cable jointing kits to prevent it from corrosion to metal materials.It is excellent thermal insulation property & resistance to water,moisture climate & temperature.
The cut pieces are supplied sand withed in silicone coated paper,whereas for continuous rolls,it is spooled and interleaved with release paper/polyethylene & packed in a poly bag.
Mastic Tape is use for insulation in cable jointing kits to prevent it from corrosion to metal materials.It is excellent thermal insulation property & resistance to water,moisture climate & temperature.

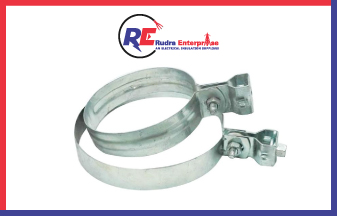

- Screw:Shall be held captive in the clamp housing.
- Band: Thread form commencing at the free end extending for a length sufficient to enable the clamp to be tighten on to the smallest diameter of component within the working ranger for which it is designed.
- Housing: This shall not be readily removable from the band.
Mastic Tape is use for insulation in cable jointing kits to prevent it from corrosion to metal materials.It is excellent thermal insulation property & resistance to water,moisture climate & temperature.
- Screw:Shall be held captive in the clamp housing.
- Band: Thread form commencing at the free end extending for a length sufficient to enable the clamp to be tighten on to the smallest diameter of component within the working ranger for which it is designed.
- Housing: This shall not be readily removable from the band.

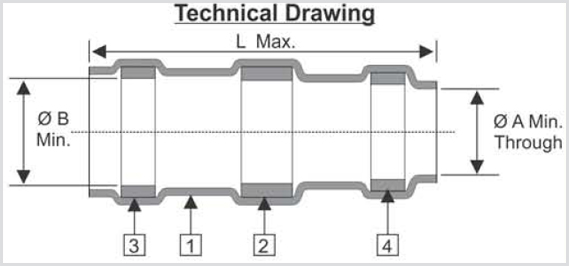

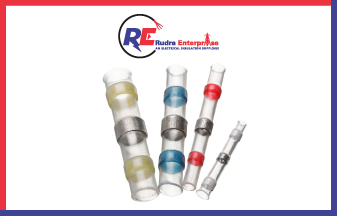

- INSULATION SLEEVE: Heat Shrinkable ,radiation cross-linked modified polyfin.
- SOLDER PREFORM WITH FLUX:
SOLDER: As per ANSI/J-STD-006.
SOLDER: As per ANSI/J-STD-006.As per ANSI/J-STD-006. - MELTABLE SEALING RING: Thermally stabilized thermoplastic.(size 3,5,6,7,9,11); natural(size 13)
- MELTABLE SEALING RING: Thermally stabilized thermoplastic.(size 3,5,7,11); gray (size 6);natural(size 9,13)

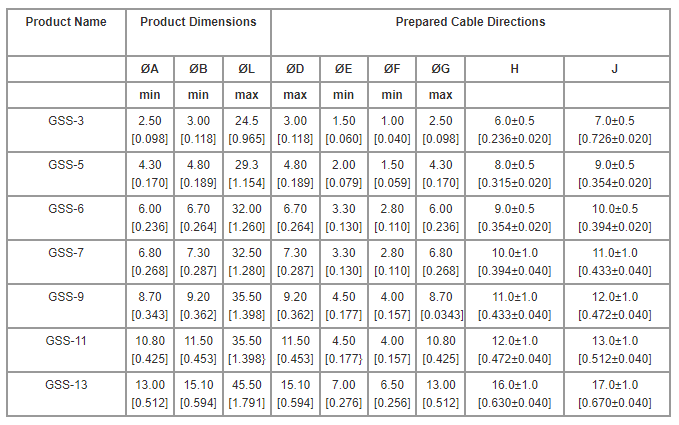

- These controlled soldering devices are designed for termination of a bare or tin-plated copper shield on cable having an insulation rated for at least +85oC,meeting the dimensional criteria listed in the table above.
- Temperature range : -55o C to +125o C
- When installed properly ,it will meet the requirments for best results ,prepare the cable as shown:
