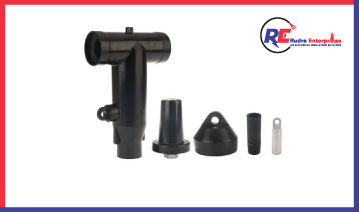

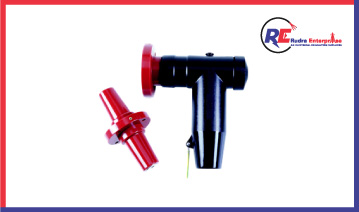

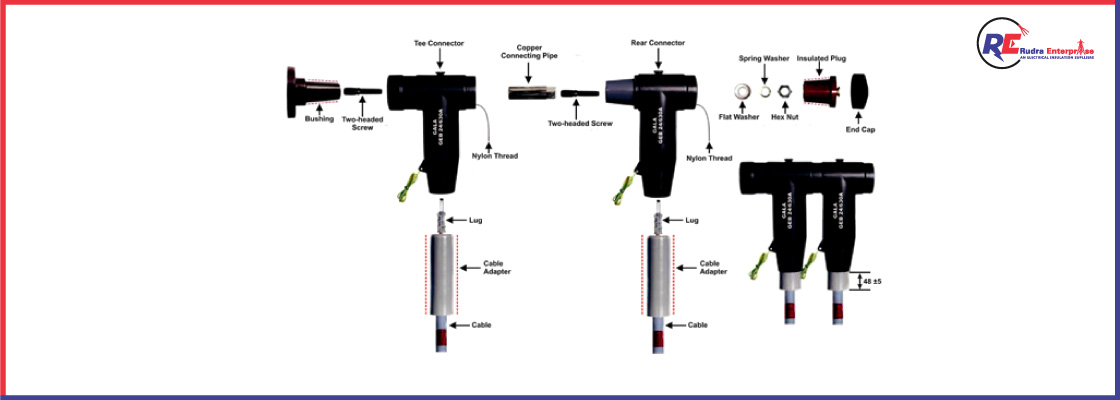

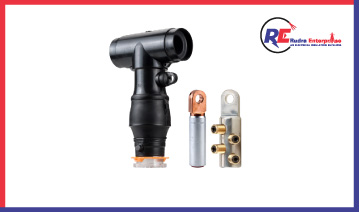

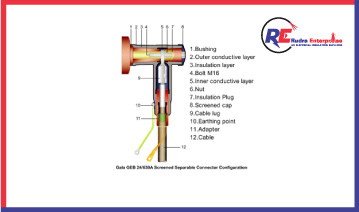

Gala Screened Separable Connectors and Touch proof terminations are designed to connect single and three core polymeric cables to medium voltage switchgear and other equipment using bushings type "C" specified for 630A upto 24kV. Made of a highly modified EPDM rubber and protected by a touch proof outer conductive screen connected to earth
Supporting a wide application range of Touch proof terminations, the design incorporates one body and stress cone adapters to cover all cross section from 25 - 400 sq.mm. All kits include high-performance multi range compression lugs matching the design of the design of the connector.
- Provides fully screened and submersible separable connection.
- Mating with C - type bushings and plugs complying with EN 50180 & EN 50181
- Compact design
- 100% factory tested

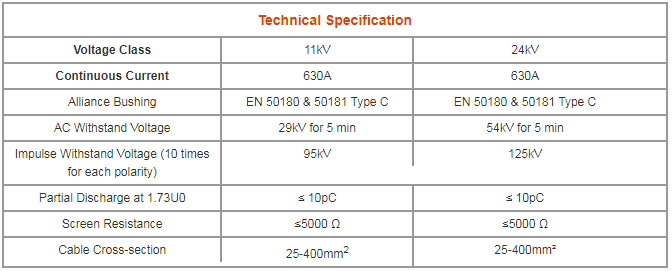

- Voltage class: 11kV, 15kV, 24kV

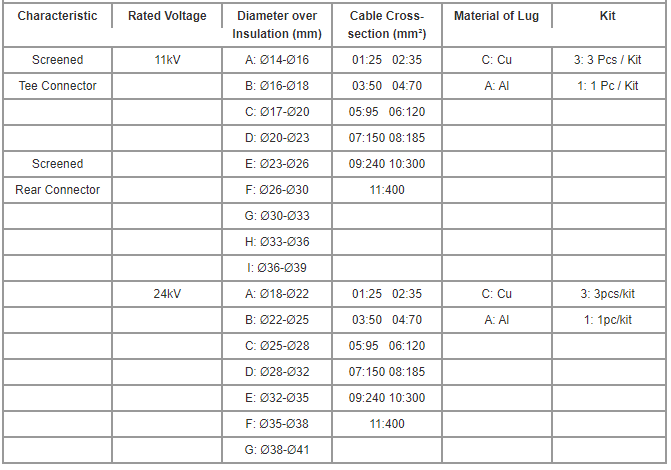

- GEB → gala code
- 11 → Voltage (kv)
- 630→ Current Rating
- A→ Dia. Over Insulation
- 02→ Cross Section Area Of Cable
- C→ C-copper / A-aluminium
- 3→ 3: 3 Pcs Kit / 1: 1 Pc Kit

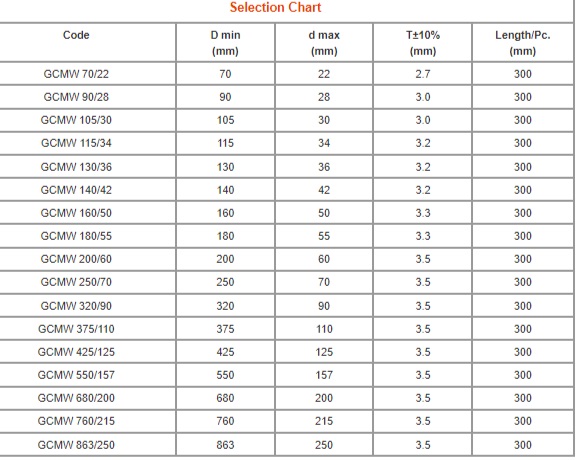

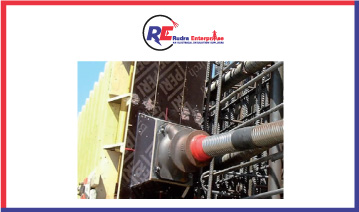

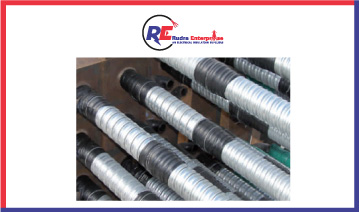

Heat Shrink Coupler is a Tubing used for jointing the posttensioning ducts to ensure leak tightness of connections between two consecutive portion of duct.

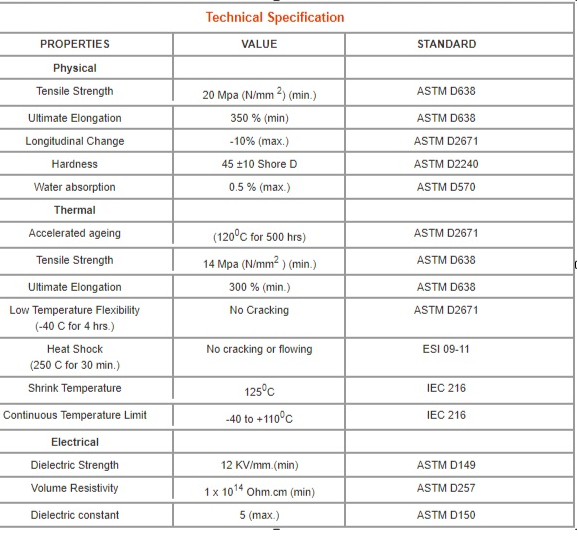

These tubes are manufactured from high quality Cross-linked Polyolefin material. Hot melt adhesive lining provides 100% sealing according to IP 68 (Ingress Protection). Heat Shrink Couplers ensure a tight seal around the pre-stressing duct connections.
- Easy & Quick Installation. No special skill required.
- High resistance to Impact & Abrasion.
- Suitable for Wet and Dry underground conditions.
- Joint in-line with pipe.
- Superior elastomeric characteristics allows better conformance over irregular contours.
- High Shrink ratio (3:1) helps to reduce the stock requirements with few sizes covering greater pipe application range.
- Resistant to Heat, UV rays, Vibration, Sand-blasting & Harsh Industrial conditions.
- Customized dimensions, length & colour available.

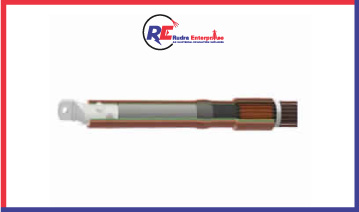

Heat Shrinkable Termination - Soloterm
Gala Heat Shrinkable Terminations for Indoor & Outdoor applications for Polymeric cables up to 33kV.
Heat Shrinkable Terminations are designed for both Indoor and Outdoor use in all climate conditions, the Soloterm range covers applications for Polymeric cables up to 33kV. The components combine to provide the important functions such as electrical performance, stress control and moisture sealing, required for all medium voltage products.
- Integrated Stress Control coating seals to the cable lug
- Integrated Stress Control bonds to the insulation and the screen blocking any moisture from within the cable
- New advanced varistor Stress Control system.
- High Performance Termination material.
- No sheds for Indoor Terminations.
- Excellent electrical performance.
- Compact design.
- Few components.
- Simple to install, high reliability.
- More economical.
- MRange taking.
- No Shelf life limitation.
- Excellent UV protection.

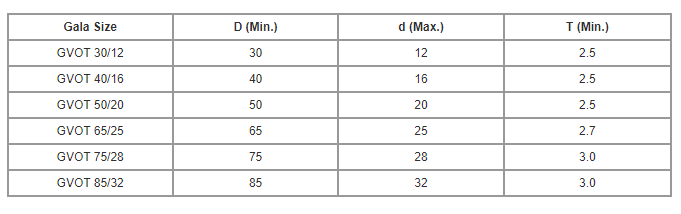

Heat Shrinkable Termination - GVOT Tube

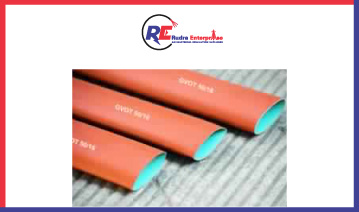

Heat Shrink GVOT Sleeve is manufactured from High Quality Cross-linked polyolefin material. It is used to protect cables or similar substrates in areas of extreme environmental conditions and high electrical stress. The tubing protects substrates from erosion caused by leakage current. The sealant provides a moisture proof environmental seal to the substrate. The tubing is normally used as an integral part of Gala Cable Terminations for voltages above 1 kV.
- Integrated new varistor stress control system.
- Excellent electrical performance.
- Compact design.
- Few components.
- Simple to install, high reliability.
- More economical.

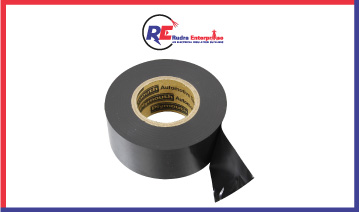

Non Shrinkable High Voltage Tape

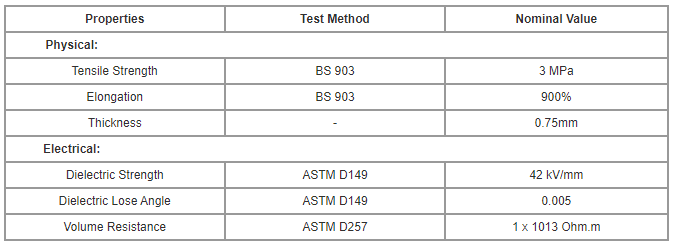

Gala Non Shrinkable Insulation Tape is an EPR based insulation tape possessing excellent electrical, chemical and physical properties. it maintains a tight insulation built up without any voids giving good electrical stability and sresistance to moisture penetration. Compatible with most commonly used Cable Jackets i.e. XLPE, PVC, PILC or Rubber Sheathed Cable.
- The tape has the property of cold flow, thereby when applied with 50% overlap, different layers, sticks with each other resulting into formation of void free insulation.
- Excellent resistance moisture, contamination and adverse environmental conditions.
- Excellent UV stabilized & weather resistant.
- High heat dissipation helps to keep the conductor cooler.
- Provides protection to the conductor material against corrosive elements present in the environment.
- Standard Color: Black
- Keep open end of the tape on the start position of the cable to be insulated and then stretch the tape so as to reduce the width to 2/3 of its original width and then start wrapping 2/3 width tape with 50% overlap continuously around the cable till no portion is left uninsulated. Then repeat the taping process till the desired insulation & thickness is achieved.
- The tape should be applied in successive half lapped, level wound layers until desired build up is reached. To eliminate voids in critical areas, highly elongate the tape. Stretch the tape in these critical area just short of its breaking point. In less critical area, less elongation is sufficient. Stretch 3/4 of its original width in less critical area.
- Always attempt to half lap to produce a uniform build up.
- Care should be taken to avoid direct contact betweenthe tape and petroleum type solvents and oils. Oils may affect the electrical properties of the tape.
- The rolls should be stored flat on their cut edges in theoriginal packaging. The product must be protected dust, heat, moisture, direct sunlight and solvent fumes. Storage temperature between +100C and +300C. Under these conditions, the storage life of the tape in a temperature climate will be at least five years.
