Pipeline / Corrosion / Catholic Protection Products

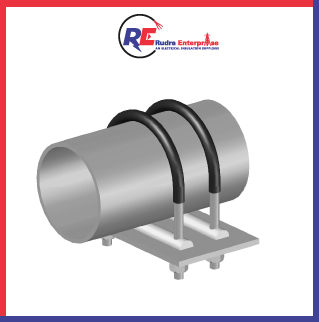

Heat Shrink Polyolefin Tube for U-Bolt Coating is suitable for corrosion and mechanical protection between U-Bolts & Pipes.
Tamper Proof Application: Custom Logo / Print withPipes running through refineries, chemical plants and offshore platforms are rested on, or secured to, a structural beam support member using U-bolts. Over time the contact area between the un-coated U-bolts and pipe erodes and starts deteriorating the material in the presence of moisture. This excessive corrosion at the pipe support point is the leading cause of process pipe failure and it eventually develops into pinhole leaks. special non- removable Ink marks permanent seal on End Cap after Shrinking, thereby avoiding claims in case of Pilferage of Cable length.
- High resistance to impact & abrasion.
- Smooth, durable and shrunk over the shank of the U-bolt without any wrinkles, thereby helps reduce the risk of cracking the paint film around the pipe as the bolt is torqued down.
- The polyolefin material provides the right combination of hardness and durability to protect the pipe paint but avoids setting up a capillary crevice around the circumference of the pipe.
- Has superior jacket tear resistance & elastomeric characteristics allowing better conformance over irregular contours without splitting.
- Provides mechanical protection and better abrasion resistance in harsh environments, e.g. tube rubbing against sharp objects or in constant friction
- Provides good strain relief.
- High shrink ratio (3:1) can help rationalize the stock requirements and also provides a greater application range.
- After recovery, it provides an excellent outer cover for protection.
- Highly reliable as it is unaffected by heat, ultra-violet rays, vibration, sandblasting or other conditions pertaining to an industrial and marine environment
Market Segment:Electrical, Offshore, Marine, Industrial Oil and Gas Utilities

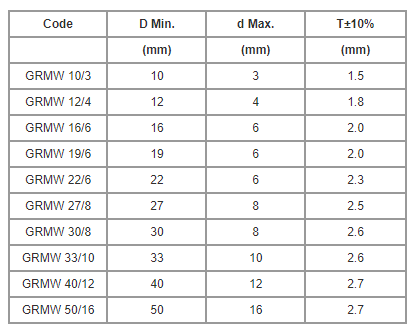

All dimensions in mm

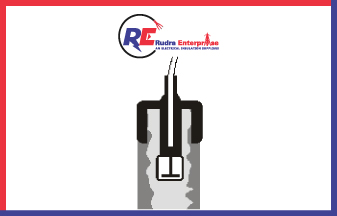

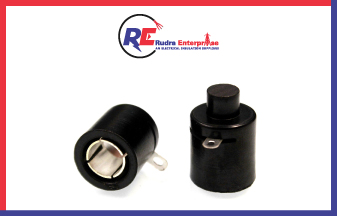

Anode cap is Heat Shrinkable Cap, used to seal and protect the critical connection between the lead wire and anode.
It provides stress relief, moisture proofing and electrical insulation at the lead wire exit point. It is the ideal solution to the problem of premature system failure due to corrosion causing lead wire to come out of the anode.
It is made from a highly Cross-linked Polyolefin material. Rubber based mastic coating inside the cap adheres to Anode material and wire insulation which provides water tight sealing according to IP 68 (Ingress Protection).

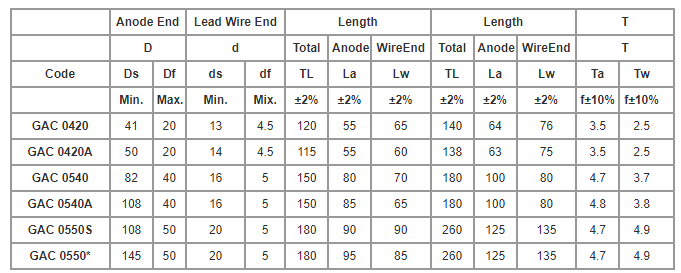

All dimensions are in mm

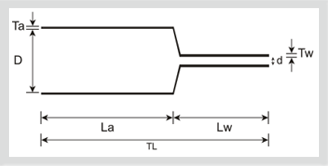

D,d : Internal Diameter; s : as supplied; f; after free recovery; Ta, Tw: Thickness of Anode & Lead Wire End

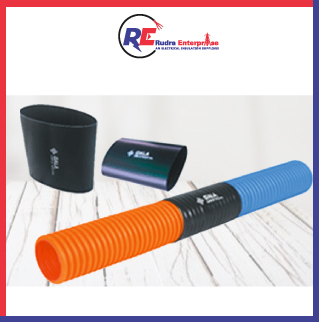

Heat Shrink Coupler is a Tubing suitable to joint Corrugated HDPE pipes, used in Water management, Irrigation, Sanitary, Sewer and Drainage, Construction, Mining industries, Ducting and for underground Cable protection.
These tubes are manufactured from high quality Cross-linked Polyolefin material. Hot melt adhesive lining provides 100% sealing according to IP 68 (Ingress Protection).
It is feasible and the most economic jointing solution compared to Conventional Butt welding or using Snap Fit Coupler or Split coupler.
- Easy & Quick Installation. No special skill required.
- High resistance to Impact & Abrasion.
- Suitable for Wet and Dry underground conditions.
- Joint in-line with pipe.
- Superior elastomeric characteristics allows better conformance over irregular contours.
- High Shrink ratio (3:1) helps to reduce the stock requirements with few sizes covering greater pipe application range.
- Resistant to Heat, UV rays, Vibration, Sand-blasting & Harsh Industrial conditions.
- Customized dimensions, length & colour available.

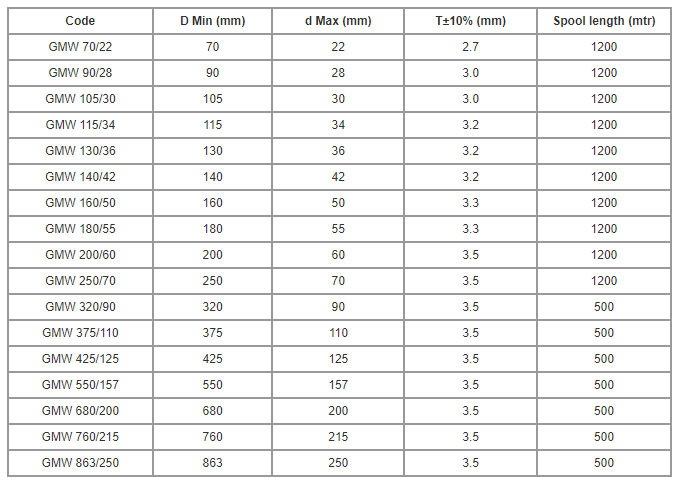

All dimensions are in mm

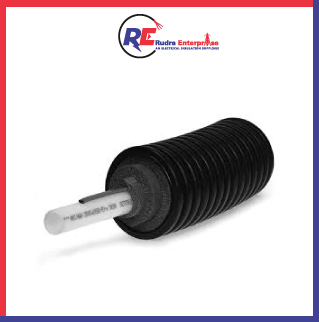

Pre-insulated Pipe Sealing Cap is Heat Shrink Cap with Hot Melt Adhesive, used to seal and to protect the joints of pipelines and other substrates . The caps are manufactured from high quality Cross-linked Polyolefin material.
- Excellent insulation end seals and provide maximum moisture protection.
- Provides watertight seal and prevents water access to the exposed insulation at the weld joint area.
- Provides corrosion protection to pipeline joints and other substrates.
- ?Hot melt adhesive lining provides 100% environmental sealing against weathering, moisture, contamination and adverse environmental conditions according to IP 68.
- Can be factory installed, once installed the Cap protects the pre-insulated pipe during transportation and storage
- Reduces repairing cost.
- Resistance to UV rays & Ozone.
- Easy to install.

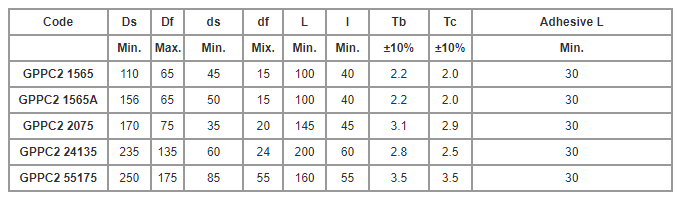

All dimensions are in mm

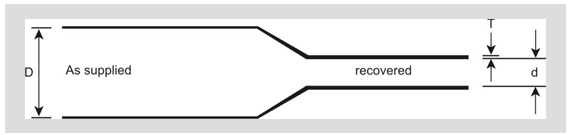

D,d : Internal Diameter; s : as supplied; f; after free recovery; Tb, Tc: Thickness
