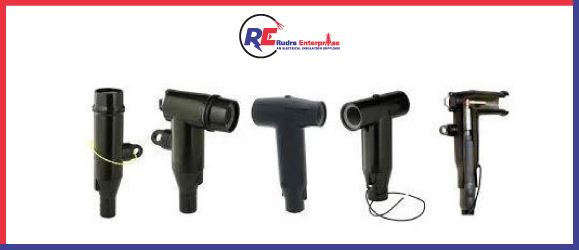

Screened Seperable Connector upto 24 kV - 630 A
Gala Screened Separable Connectors and Touch proof terminations are designed to connect single and three core polymeric cables to medium voltage switchgear and other equipment using bushings type "C" specified for 630A upto 24kV. Made of a highly modified EPDM rubber and protected by a touch proof outer conductive screen connected to earth

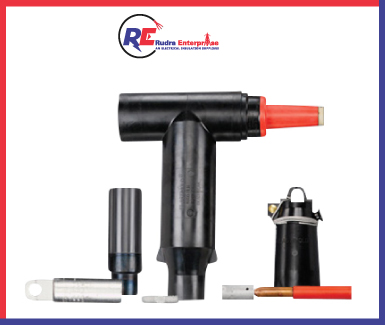

Supporting a wide application range of Touch proof terminations, the design incorporates one body and stress cone adapters to cover all cross section from 25 - 400 sq.mm. All kits include high-performance multi range compression lugs matching the design of the design of the connector.
- Provides fully screened and submersible separable connection.
- Mating with C - type bushings and plugs complying with EN 50180 & EN 50181
- Compact design
- 100% factory tested

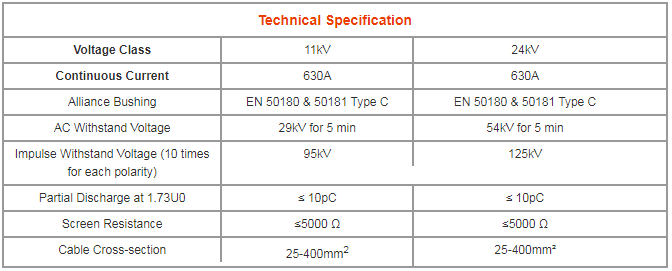

- Voltage class: 11kV, 15kV, 24kV

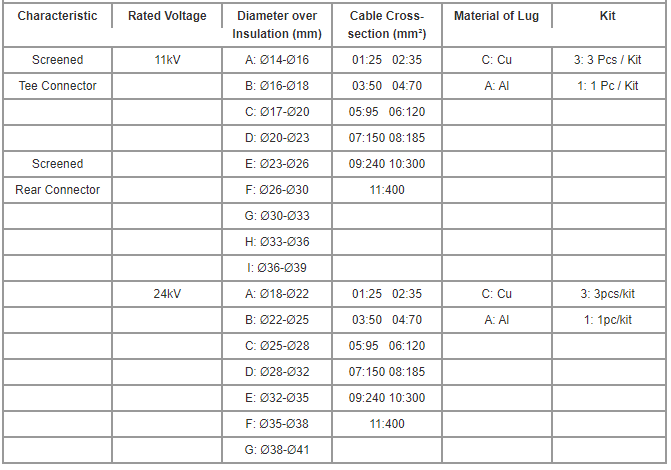

- GEB → gala code
- 11 → Voltage (kv)
- 630→ Current Rating
- A→ Dia. Over Insulation
- 02→ Cross Section Area Of Cable
- C→ C-copper / A-aluminium
- 3→ 3: 3 Pcs Kit / 1: 1 Pc Kit
