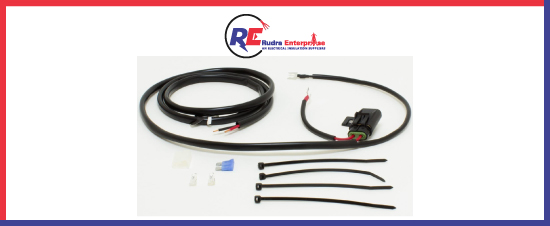

Wire Harness Products

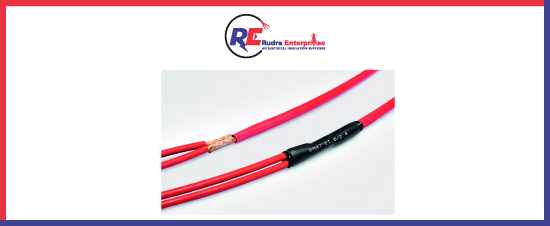

Heat shrinkable Dual wall tubes are designed to provide environmental sealing in automotive splices. Hot melt adhesive prevents entry of moisture between the wires.
- The tubing is inserted over the splice area and on heating the tube starts shrinking and the adhesive melts and squeezed around where the wires are crimped or welded connectors.
- Light duty wire harnessing for electrical and electronic applications.
- Provides electrical insulation and protection for in-line components.
- Used as strain relief for electrical wire connection.
- Good flexibility and provides mechanical protection.
- Flame retardant tubes lowers the risk of electrical fires.

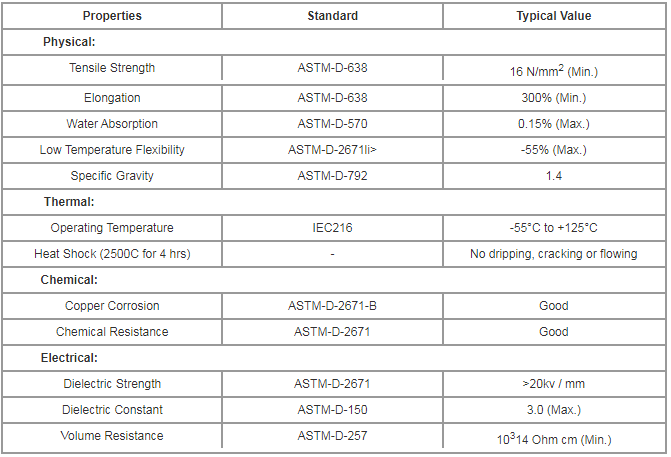

General Properties Of Product:
- 4:1 Shrink ratio
- Resistance to chemical, copper corrosion and fungus.
- UV stabilized.
- Standard Colors: Black

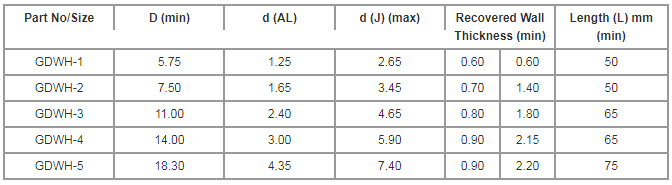

All dimensions are in mm
All dimensions are in mm
D, d- Dia as Supplied; A - Adhesive Liner; W,J - Jacket; Tf - Free Recovered Thickness, L - Length as Supplied

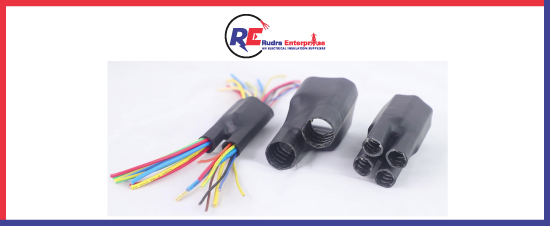

Heat Shrinkable Breakouts:

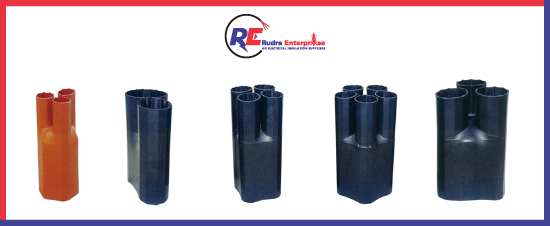

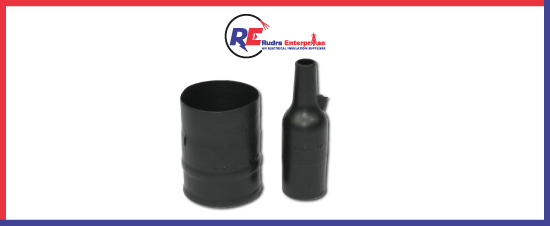

Heat Shrinkable Boots:

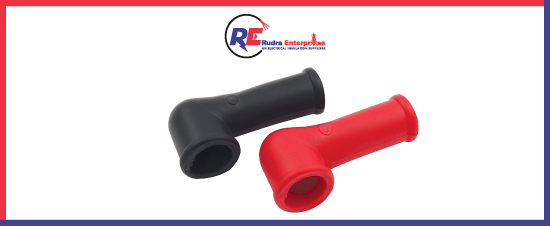

Terminal Covers:

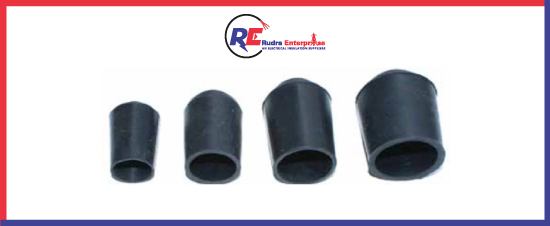

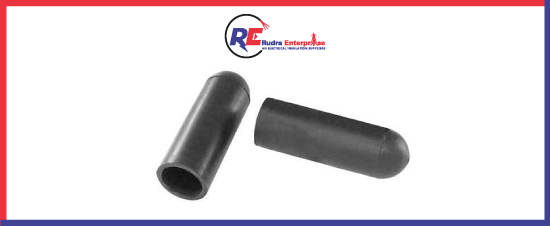

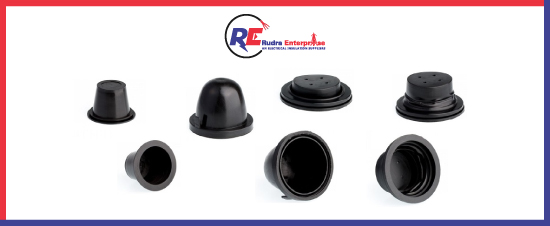

End Caps:

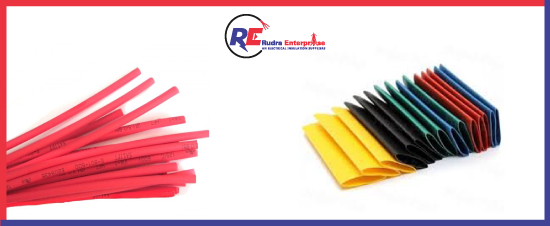

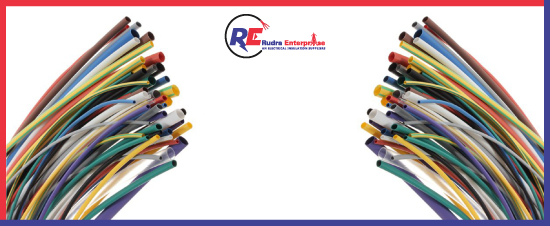

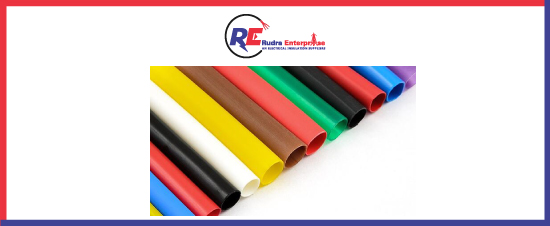

Heat Shrinkable Tube:
